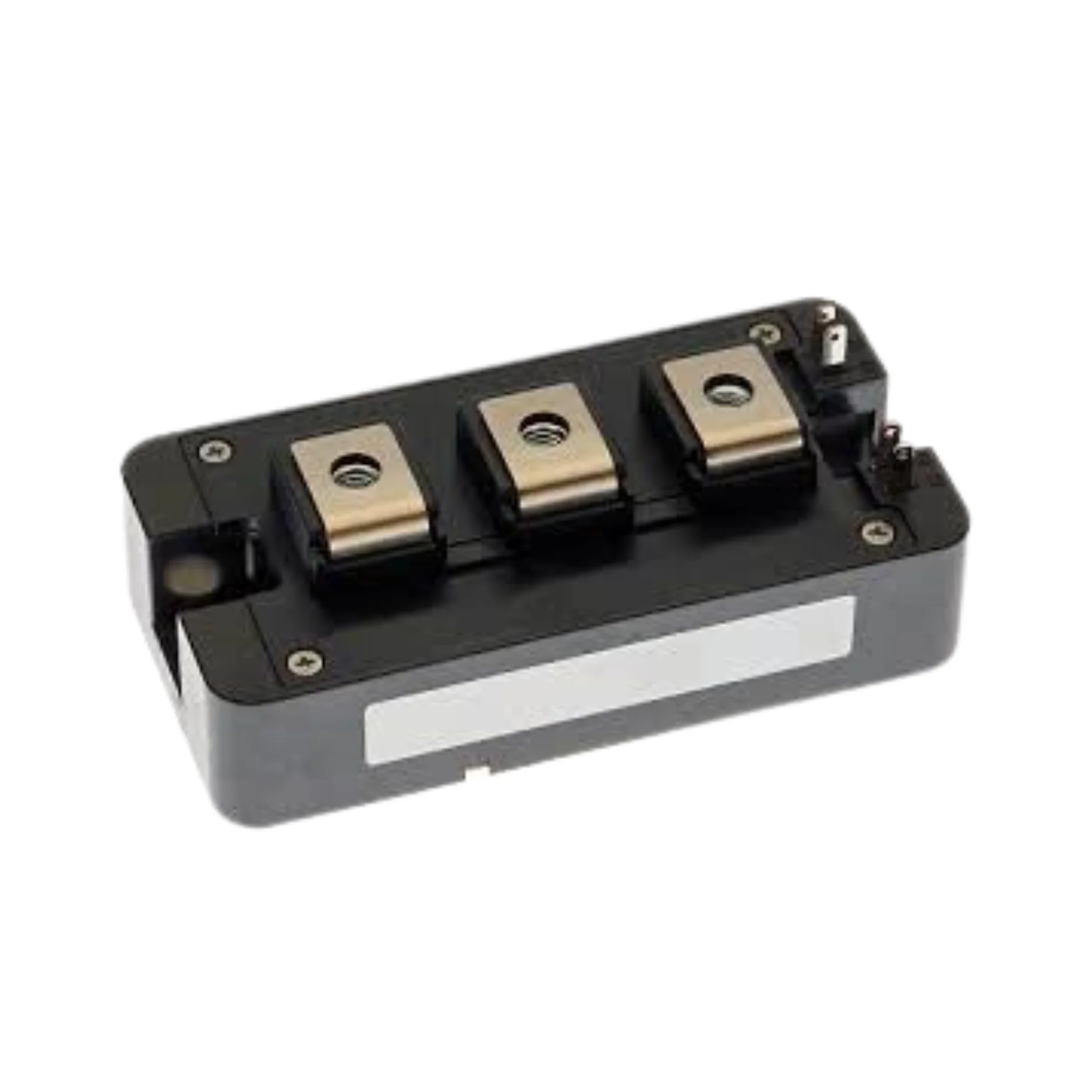

Mitsubishi CM200DY-24T

Overview

The Mitsubishi CM200DY-24T is a robust dual IGBT power module meticulously engineered to deliver exceptional performance in demanding industrial power switching applications. As part of Mitsubishi Electric's renowned IGBT module series, this device integrates cutting-edge trench-gate technology, providing an optimal balance of high efficiency, low power loss, and rapid switching capabilities. Designed for reliability and longevity, it features an insulated baseplate for superior thermal management and a compact, rugged chassis-mount housing, making it an ideal choice for a wide array of high-power inverter systems and motor control units globally.

Key Features

• Dual IGBT half-bridge topology for versatile power control
• High continuous collector current rating of 200 A
• Impressive collector-emitter voltage of 1200 V
• Advanced trench-gate technology for enhanced efficiency and reduced switching losses
• Integrated fast-recovery free-wheeling diodes
• Insulated baseplate for excellent thermal transfer and simplified mounting
• Rugged and compact chassis-mount package
• Wide operating temperature range from –40 °C to +150 °C

Technical Specifications

• Part Number: CM200DY-24T
• Configuration: Dual IGBT Module
• Collector Current (Ic): 200 A
• Collector-Emitter Voltage (Vces): 1200 V
• VCE(sat) (typ.): 2.1–2.2 V at 200 A
• Gate-Emitter Voltage (Vges): ±20 V
• Switching Speed: Fast
• Thermal Resistance (Junction-Case): ~0.18 °C/W
• Mounting Type: Chassis mount (isolated baseplate)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Power module
• Weight: Approx. 300 g

Applications

• Advanced motor drives and industrial automation systems
• High-power inverters and sophisticated converters
• Uninterruptible Power Supply (UPS) and critical backup power systems
• Renewable energy systems, including solar and wind power inverters
• High-voltage switching equipment and power conditioning
• Welding equipment and induction heating applications

Why Choose This Model?

• Optimized Performance: Provides an ideal combination of high current and voltage capacity for diverse industrial needs.
• Superior Efficiency: Features efficient and fast trench-gate switching technology, minimizing energy loss.
• Unwavering Reliability: Benefits from Mitsubishi’s industrial-grade durability and proven performance pedigree.
• Robust Thermal Management: Boasts a reliable thermal design with an insulated mounting baseplate, ensuring stable operation.
• Global Industry Standard: Widely adopted and trusted in critical power electronics systems across various sectors.
• Comprehensive Solution: Integrates free-wheeling diodes for complete and efficient power conversion.

Order Now

Elevate your power electronic designs with the Mitsubishi CM200DY-24T IGBT power module. This high-performance, dual-transistor unit is readily available for immediate dispatch and ships worldwide, ensuring you can access leading-edge technology no matter your location. Explore our extensive collection of Mitsubishi IGBT Modules and a full spectrum of Power Electronics Components, including diodes, thyristors, GTOs, and MOSFETs, to find the perfect solutions for your next project. Secure your reliable power switching solution today and experience the Mitsubishi difference in efficiency and durability.
