Lenze EVS9323-ES

Overview

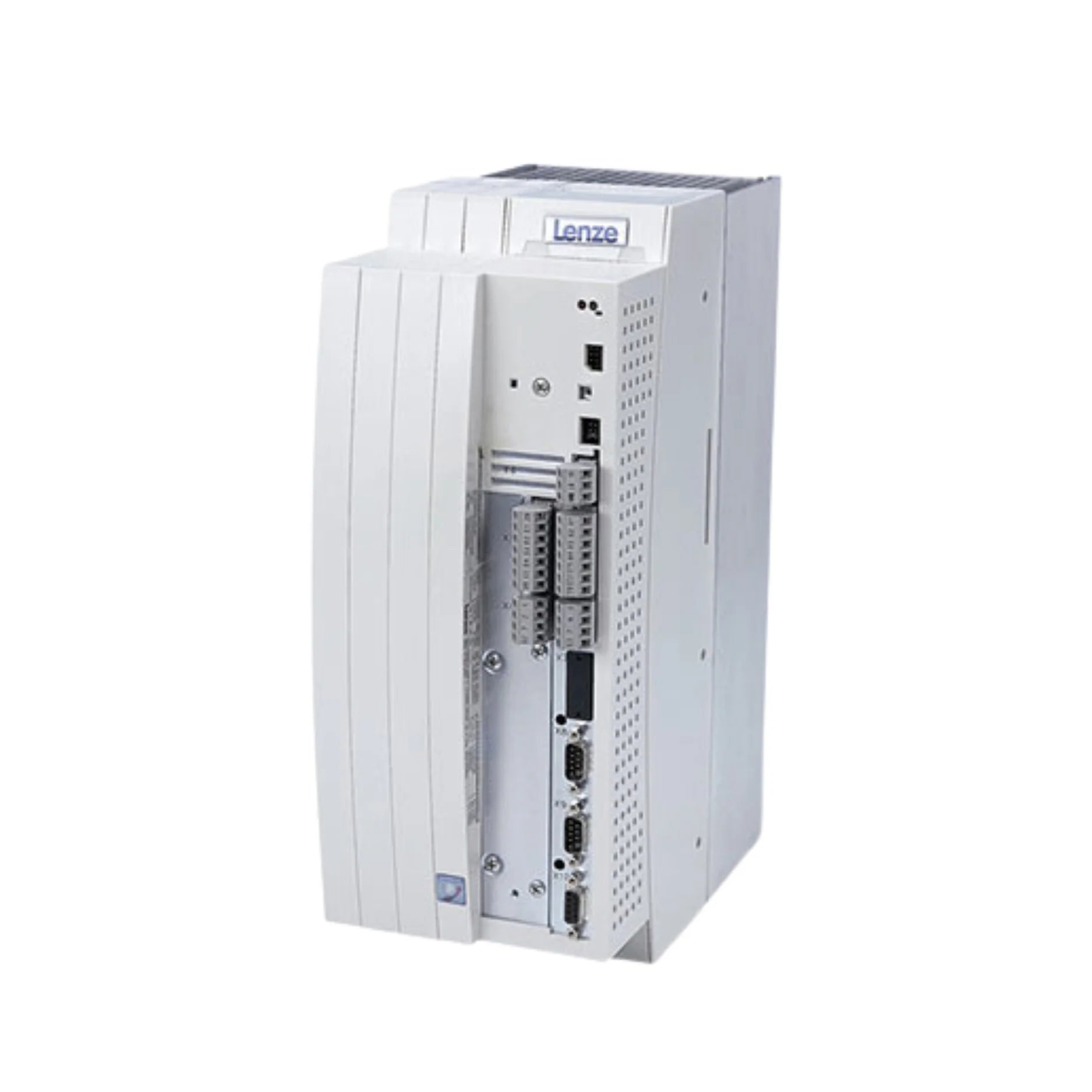

The Lenze EVS9323-ES is a high-performance modular servo inverter from the renowned Lenze 9300 series, meticulously engineered for demanding motion control applications. Rated for 5.5 kW at 400 V, this sophisticated drive seamlessly integrates precise regulation capabilities for both synchronous and asynchronous motors through advanced vector control. Its innovative modular architecture ensures unparalleled flexibility, allowing for easy integration with a variety of extension modules to customize fieldbus connectivity, enhance encoder feedback, and expand I/O options. The EVS9323-ES is the ideal solution for industries requiring robust, adaptable, and highly accurate motor control, providing a foundation for optimized operational efficiency and system performance.

Key Features

• High-performance vector control for precise motor regulation
• Modular design with expansion slots for ultimate flexibility
• Integrated positioning and advanced drive functions
• Built-in brake chopper for enhanced safety and control
• Compatibility with both synchronous and asynchronous motors
• Optional fieldbus interfaces including CANopen and Profibus
• Robust 5.5 kW power rating at 400 V input

Technical Specifications

• Model: EVS9323-ES
• Series: Lenze 9300 Servo Inverters (EVS Series)
• Rated Power: 5.5 kW (7.5 HP)
• Input Voltage: 3-phase 400 V AC ±10%
• Output Frequency: 0-599 Hz
• Motor Compatibility: Synchronous and Asynchronous Motors
• Control Method: Vector Control with Feedback Options
• Protection Class: IP20
• Cooling: Internal Fan
• Mounting: Panel-mounted
• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)
• Communication: Via Plug-in Modules (e.g., CANopen, Profibus)
• Certifications: CE, UL, cUL
• Features: Integrated Positioning, Drive Functions, Brake Chopper

Applications

• High-precision positioning systems and robotics
• Advanced automated handling and material transfer
• Packaging machinery and complex conveyor systems
• Printing, textile, and intricate process automation
• OEM systems demanding flexible modular drive architectures
• Industrial applications requiring dynamic and accurate motor control

Why Choose This Model?

• Unmatched Modular Flexibility: Easily customize configurations to meet specific application requirements with a wide range of expansion options.
• Superior Performance: Experience high-performance vector control for exceptionally precise and dynamic motor regulation, ensuring optimal system response.
• Integrated Motion Logic: Benefit from integrated motion logic and advanced safety functions, streamlining complex processes and enhancing operational security.
• Proven Reliability: Rely on trusted performance in even the most demanding industrial environments, backed by Lenze's reputation for quality and durability.
• Part of the Elite 9300 Series: Integrate with confidence, knowing this inverter is a key component of the highly regarded and proven Lenze 9300 servo series.
• Global Availability & Support: The Lenze EVS9323-ES is available and ships worldwide, with comprehensive support ensuring seamless integration and operation.

Order Now

Elevate your industrial automation capabilities with the Lenze EVS9323-ES servo inverter. Its advanced features, robust design, and modular flexibility make it the ideal choice for optimizing precision and efficiency in your operations. Don't miss out on securing precise dynamic motor control for your critical applications. Order your Lenze EVS9323-ES today and experience the pinnacle of servo inverter technology. For additional options and to explore our complete range of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules, please browse our extensive catalog.
