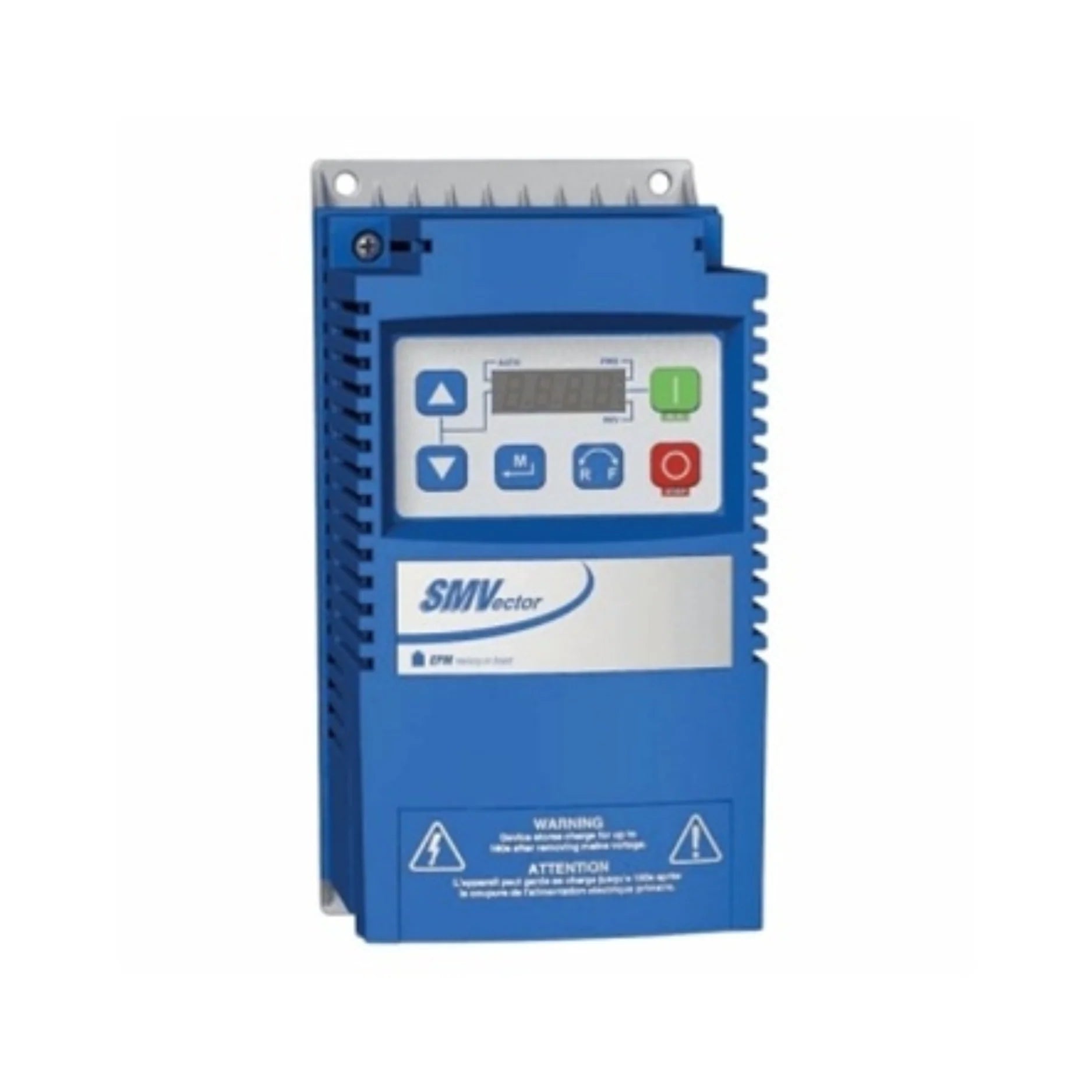

Lenze ESV152N06TXB

Overview

The Lenze ESV152N06TXB is a high-performance 2 HP (1.5 kW), 3-phase 600V frequency inverter from the acclaimed SMVector series, engineered to deliver unparalleled precision and reliability for a diverse range of industrial motor control applications. This robust drive is designed for seamless integration into existing systems, providing efficient and accurate operation for critical processes. Its advanced features and compact design make it an ideal choice for optimizing material handling, packaging, and general automation systems, ensuring peak performance and energy efficiency.

Key Features

• Optimal Motor Control: Utilizes advanced sensorless vector control for precise speed and torque regulation.
• Robust Power Handling: Supports 3-phase 600V AC input, delivering 2 HP (1.5 kW) rated output power.
• Integrated Braking: Built-in brake chopper facilitates dynamic braking, reducing the need for external components.
• Industrial Durability: NEMA 1 (IP31) enclosure provides protection for demanding industrial environments.
• Space-Saving Design: Compact dimensions allow for efficient installation in control cabinets and panels.
• Expandable Architecture: Modular design supports plug-in modules for communication and I/O expansion.
• Wide Operating Range: Operates reliably across a temperature range of -10°C to 55°C (14°F to 131°F).

Technical Specifications

• Model: ESV152N06TXB
• Series: SMVector Frequency Inverter
• Input Voltage: 3-phase 600V AC
• Rated Output Power: 2 HP (1.5 kW)
• Rated Output Current: 2.7 A
• Output Frequency: 0–500 Hz
• Switching Frequency: 4, 6, 8, 10, 12, or 16 kHz
• Control Method: Sensorless Vector Control
• Protection Class: NEMA 1 (IP31)
• Cooling Method: Forced Air Cooling
• Dimensions (H x W x D): 7.52 in x 3.90 in x 5.45 in (191 mm x 99 mm x 138 mm)
• Weight: 2.3 lb (1.04 kg)
• Operating Temperature Range: -10°C to 55°C (14°F to 131°F)
• Certifications: CE, cULus, C-Tick
• Communication: Supports modular expansion (modules sold separately)

Applications

• Conveyor Systems and Material Handling
• Packaging and Palletizing Machinery
• Pumps, Fans, and HVAC Systems
• Food and Beverage Processing Equipment
• Textile Machinery
• General Industrial Automation

Why Choose This Model?

• Unmatched Precision: Achieve highly accurate speed and torque control for enhanced process efficiency and product quality.
• Simplified Integration: The compact design and integrated brake chopper streamline installation and reduce overall system complexity and costs.
• Enhanced Durability: Built to withstand harsh industrial conditions with a robust NEMA 1 enclosure and wide operating temperature range.
• Future-Proof Flexibility: Modular expansion capabilities allow for easy adaptation to evolving application requirements and communication protocols.
• Trusted Performance: Part of the renowned Lenze SMVector series, synonymous with reliability and advanced motor control technology.
• Optimized Energy Efficiency: Advanced control algorithms contribute to lower energy consumption and reduced operational costs.

Order Now

Elevate your industrial automation processes with the Lenze ESV152N06TXB SMVector Frequency Inverter. Its combination of power, precision, and durability makes it an indispensable component for demanding applications. Available for immediate shipment, this inverter is ready to optimize your systems. For more advanced options within this series or to explore our complete portfolio of motion control solutions, please visit our Lenze SMVector Frequency Inverters page or browse our full range of Lenze Industrial Automation Products. Invest in Lenze quality for superior performance and lasting reliability.
