GE IC694MDL632

Overview

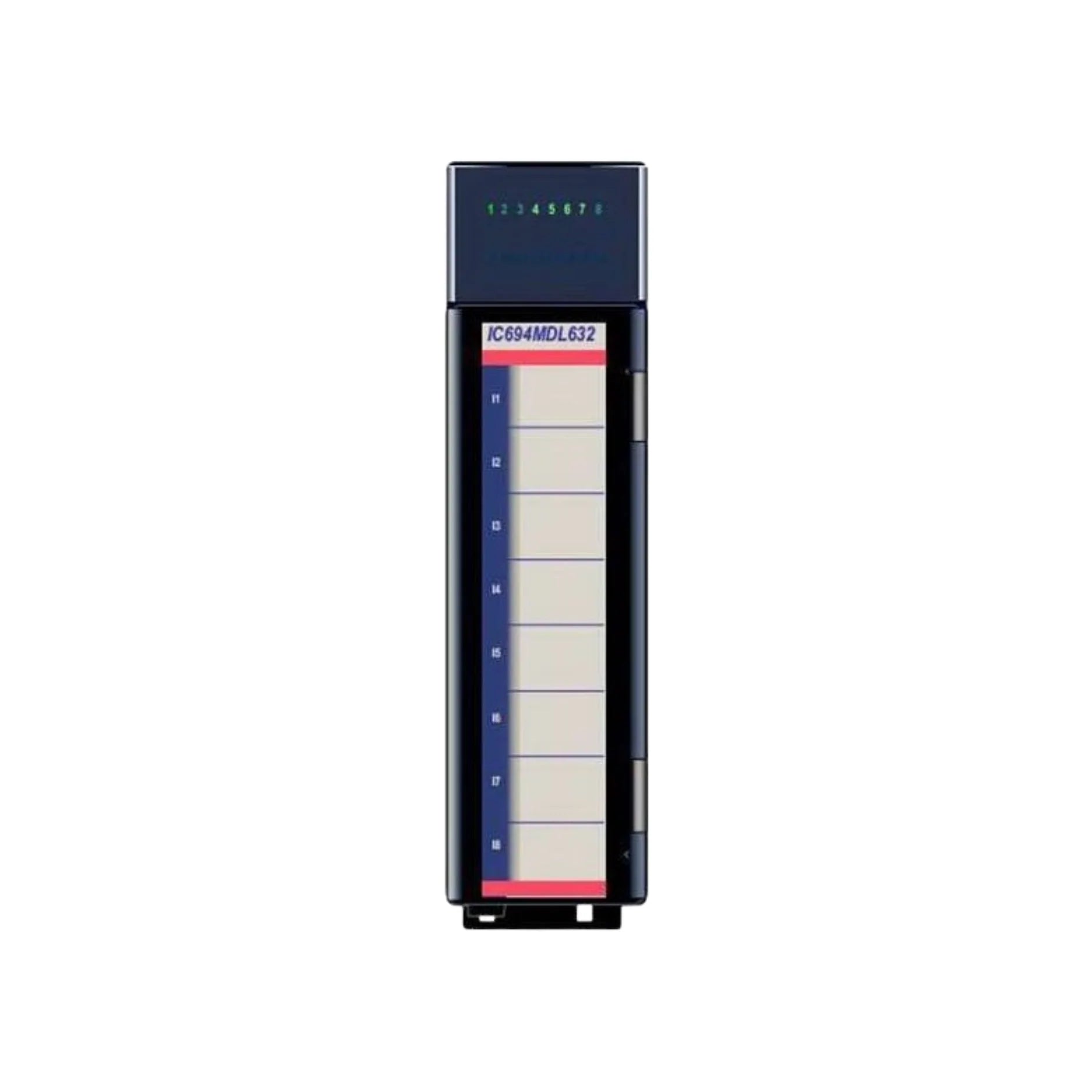

The GE Fanuc IC694MDL632 is a robust 16-point discrete input module meticulously engineered for seamless integration into the PACSystems RX3i series. This module is an essential component for industrial automation, designed to reliably acquire digital signals from a wide array of 24VDC field devices, including pushbuttons, limit switches, and proximity sensors. Adhering to positive logic (sinking inputs), the IC694MDL632 ensures precise and consistent data acquisition in demanding environments. Its innovative design incorporates two independently isolated groups of eight inputs, significantly enhancing noise immunity and providing unparalleled flexibility for field wiring configurations.

This module stands out for its reliability and performance, crucial for maintaining optimal operational efficiency in various industrial applications. Whether upgrading an existing system or implementing a new one, the IC694MDL632 offers the high-quality engineering expected from GE Fanuc, ensuring long-term stability and compatibility within your RX3i system.

Key Features

• Input Type: 24VDC positive logic (sinking input devices) for versatile compatibility.
• Number of Inputs: 16 discrete input channels, thoughtfully arranged in two isolated groups of eight.
• Status Indicators: Equipped with 16 vibrant green LEDs, providing clear, real-time status for each individual channel.
• Group Isolation: Advanced electrical isolation between input groups and the module's logic circuitry, minimizing interference.
• Hot-Swappable Capability: Designed for convenience and continuous operation, allowing for hot-swapping when paired with compatible RX3i hardware.
• Compact Design: Integrates 16 inputs into a space-efficient, single-slot form factor, optimizing panel real estate.
• Enhanced Diagnostics: Built-in channel LEDs facilitate quick and easy troubleshooting, reducing downtime.

Technical Specifications

• Model Number: IC694MDL632
• Series: PACSystems RX3i
• Input Voltage Range: 0–30 VDC, offering broad compatibility.
• On-State Voltage: 11.5–30 VDC
• Off-State Voltage: 0–5 VDC
• On-State Current (minimum): 3.2 mA
• Off-State Current (maximum): 1.1 mA
• Typical Input Delay: 7 ms for both ON and OFF transitions, ensuring rapid response.
• Power Requirements: 5V at 80 mA, for efficient energy consumption.
• Isolation Voltage: 250V between groups and logic, guaranteeing robust electrical separation.
• Operating Temperature: 0°C to 60°C (32°F to 140°F), suitable for diverse industrial settings.
• Certifications: UL and CE certified, confirming adherence to international safety and quality standards.
• Module Type: Discrete Input Module

Applications

• Precision digital signal acquisition from various field devices in manufacturing.
• Integration into machine automation control panels for reliable input monitoring.
• Seamless OEM system integration requiring robust and isolated input solutions.
• Industrial input monitoring for a wide range of switches and sensors in processing plants.
• Supervisory control and data acquisition (SCADA) systems requiring accurate signal feedback.
• Automated testing and quality control equipment demanding consistent input reliability.

Why Choose This Model?

• Unmatched Reliability: Specifically engineered for consistent 24VDC digital signal acquisition, ensuring your operations run smoothly without interruption.
• Superior Group Isolation: The dual group isolation significantly mitigates cross-talk and electrical noise, leading to enhanced system stability and data integrity.
• Space-Saving Design: Its efficient 16-input, single-slot form factor helps to optimize cabinet space, making it ideal for compact industrial setups.
• Simplified Troubleshooting: With dedicated green LEDs for each channel, diagnostics are straightforward, drastically cutting down on troubleshooting time and improving maintenance efficiency.
• Hot-Swappable Convenience: The ability to hot-swap the module (with compatible RX3i hardware) reduces downtime during maintenance or upgrades, keeping your processes online.
• Global Compliance: UL and CE certifications confirm adherence to rigorous international standards, ensuring peace of mind for global deployments.

Order Now

Elevate the performance and reliability of your PACSystems RX3i with the GE Fanuc IC694MDL632 16-point discrete input module. This critical component is ready to enhance your industrial automation systems and is available for immediate order. Benefit from robust design, superior signal isolation, and efficient diagnostic features. Secure your module today and experience the difference in precision and operational efficiency. We ensure worldwide shipping to meet your project demands, wherever you are.
