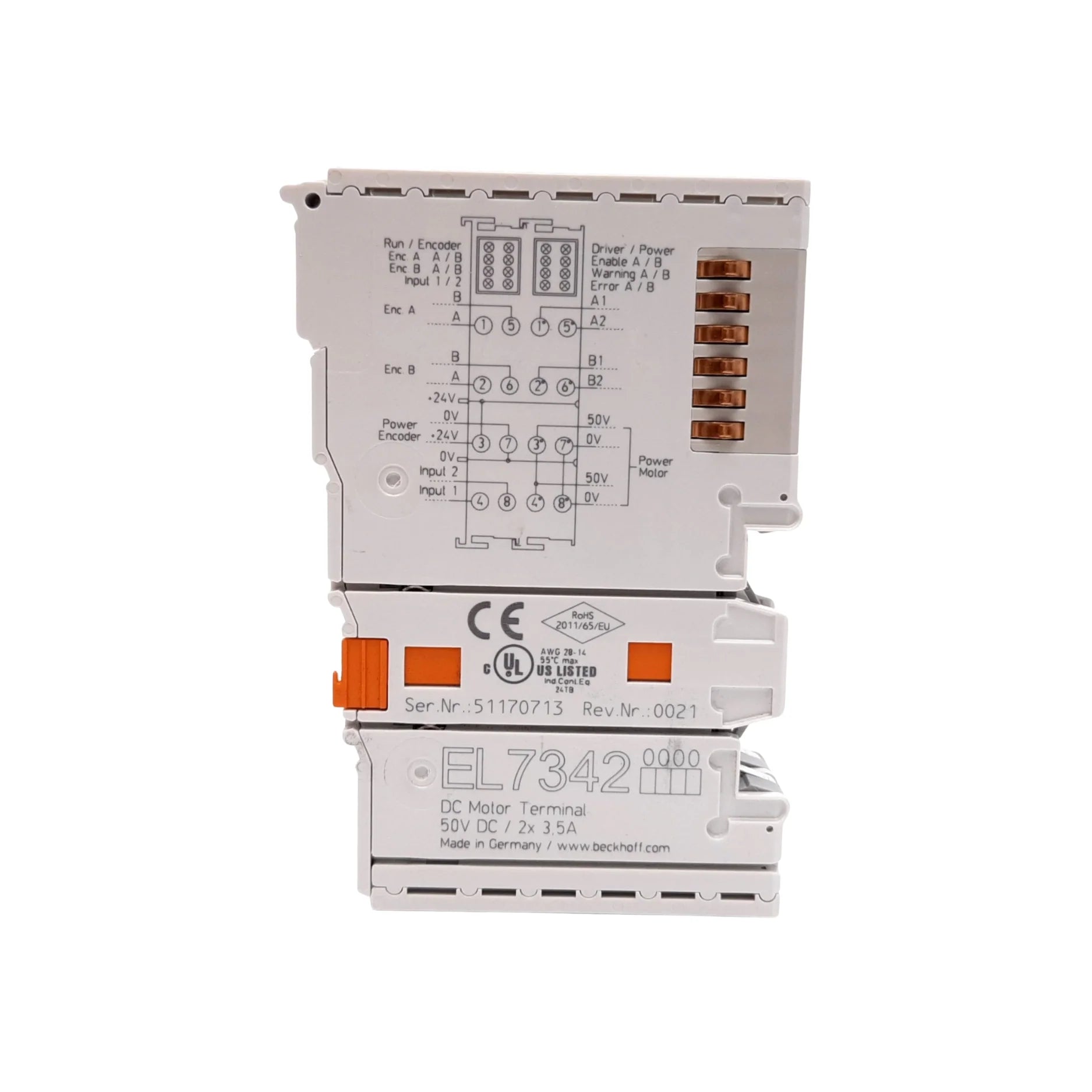

Beckhoff EL7342

Overview

The Beckhoff EL7342 is an advanced 2-channel DC motor output terminal, part of Beckhoff's acclaimed EL/ELM7xxx Compact Drive Technology series within the EtherCAT I/O system. This robust and compact module is expertly engineered for the precise control of two independent DC motors, providing unparalleled flexibility in various automation and motion control applications. Operating at up to 24 V DC, the EL7342 leverages sophisticated pulse-width modulation (PWM) to deliver highly accurate speed and torque regulation. Its design focuses on enhancing operational safety and reliability through integrated current measurement per channel and comprehensive overload and short-circuit protection, making it an indispensable component for demanding industrial environments. This terminal seamlessly integrates into existing EtherCAT systems, offering high-speed communication and real-time control capabilities essential for modern automated machinery. More than just a controller, the EL7342 is a solution for achieving superior motion dynamics and efficiency.

Key Features

• Dual independent channels for controlling two DC motors simultaneously.
• Supports a motor voltage of up to 24 V DC for wide compatibility.
• High-precision Pulse-Width Modulation (PWM) for accurate speed and torque regulation.
• Integrated current measurement on each channel for enhanced monitoring and control.
• Comprehensive overload and short-circuit protection safeguards motors and the terminal.
• Ultra-compact 12 mm housing design for significant space savings in control cabinets.
• Full compatibility with EtherCAT for rapid and deterministic data exchange.

Technical Specifications

• Model: EL7342
• Manufacturer: Beckhoff
• Channels: 2 (independent)
• Motor Voltage: 24 V DC maximum
• Continuous Output Current: Up to 3.5 A per channel
• Control Method: PWM (Pulse Width Modulation)
• Mounting: Standard DIN-rail terminal
• Housing Width: 12 mm
• Operating Temperature: –25 °C to +60 °C
• Communication: EtherCAT
• Protection: Integrated current measurement, overload, and short-circuit protection

Applications

• Precision control of small DC motors in robotics and automation.
• Driving conveyor and feeder systems in manufacturing and logistics.
• Integration into automated machinery for various industrial processes.
• Laboratory automation setups requiring accurate motion control.
• Positioning and drive systems in packaging, textile, and printing industries.
• Robotic arm control and other multi-axis motion scenarios.

Why Choose This Model?

• Experience superior performance with dual-channel DC motor control in an incredibly compact form factor.
• Achieve exceptionally smooth and precise motor operation thanks to high-precision PWM output.
• Benefit from reliable and continuous operation due to integrated protection features against overload and short-circuits.
• Ensure seamless and efficient integration into any Beckhoff EtherCAT I/O ecosystem for a unified automation solution.
• Reduce wiring complexity and save valuable cabinet space with its narrow 12 mm housing.
• Invest in a proven solution from Beckhoff, a leader in automation technology, guaranteeing quality and support.

Order Now

Elevate your automation projects with the Beckhoff EL7342 2-channel DC motor output terminal. This high-performance module is readily available and ready to ship worldwide, ensuring you can quickly implement powerful and precise motor control solutions. Take the next step in optimizing your systems by securing this essential component today. For more information or to explore other components within the Beckhoff EL/ELM7xxx Compact Drive Technology series, navigate back to our comprehensive product listings.
