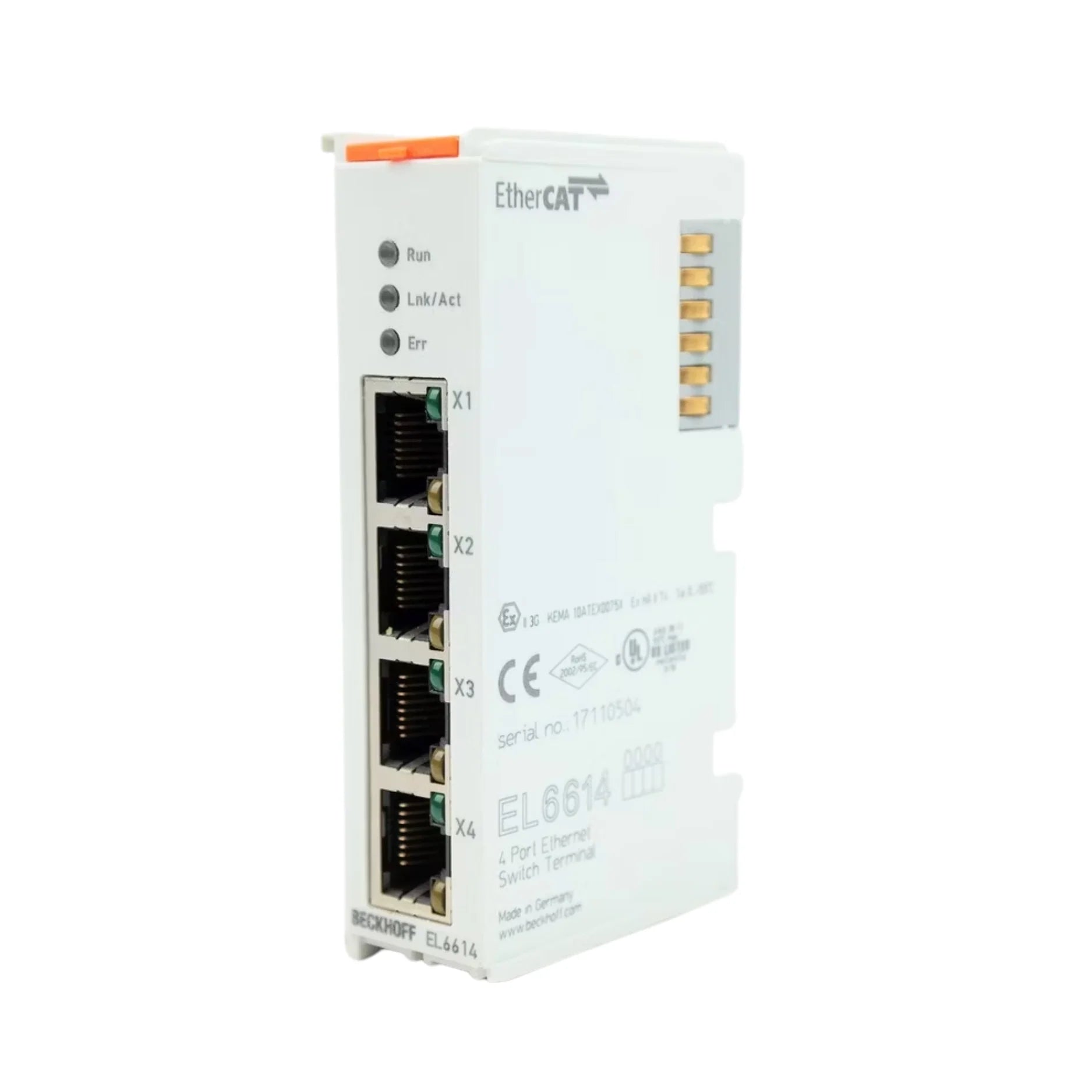

Beckhoff EL6614

Overview

The Beckhoff EL6614 is a highly efficient 4-port EtherCAT Ethernet switch terminal, meticulously engineered to seamlessly integrate within industrial automation environments. As part of Beckhoff's acclaimed EL series, this compact and robust device serves as a pivotal component for expanding network infrastructure and facilitating the connection of multiple Ethernet devices directly within your EtherCAT I/O station. Its innovative design significantly reduces wiring complexity and optimizes valuable cabinet space, making it an ideal solution for modern industrial applications where efficiency and reliability are paramount. The EL6614 supports data rates of up to 100 Mbit/s, ensuring rapid and dependable communication across your industrial network, thus enhancing overall system performance and responsiveness.

Key Features

• Integrated 4-port Ethernet switch functionality for versatile connectivity.
• Supports 10/100 Mbit/s full/half duplex for flexible network integration.
• Compact DIN-rail mounting design for maximum space efficiency within control cabinets.
• Flawless integration into existing EtherCAT I/O systems, simplifying network expansion.
• Operates without an external power supply, drawing power directly from the EtherCAT bus.
• Features auto-negotiation and auto-crossing for effortless and rapid setup.
• Robust isolation voltage of 500 V between Ethernet and EtherCAT for enhanced safety.

Technical Specifications

• Model: EL6614
• Manufacturer: Beckhoff
• Ports: 4 x RJ45 Ethernet ports
• Transmission Speed: 10/100 Mbit/s
• Communication Standard: IEEE 802.3/802.3u
• Duplex Mode: Full/half duplex, with auto-negotiation capabilities
• Isolation Voltage: 500 V (Ethernet/EtherCAT)
• Mounting Type: DIN-rail terminal
• Housing Width: 30 mm
• Operating Temperature Range: –25 °C to +60 °C
• Power Supply: Via EtherCAT bus (no external power required)
• Certification: CE, UL (pending or specific to region — please verify)

Applications

• Seamless network expansion within complex EtherCAT-based automation systems.
• Efficient connection of diverse EtherCAT and standard Ethernet devices.
• Critical communication backbone for industrial machinery and robotics.
• Advanced network infrastructure for intelligent building automation systems.
• Reliable data distribution in process control systems requiring flexible topologies.
• Distributed I/O applications in manufacturing and energy sectors.

Why Choose This Model?

• Streamlines network architecture in automation systems by consolidating switching functions.
• Its incredibly compact design and DIN-rail mounting simplify installation directly into I/O terminal rows.
• Eliminates the need for a separate, bulky industrial Ethernet switch, saving cost and space.
• Delivers unwavering, reliable performance even in the most demanding and harsh industrial environments.
• Offers cost-effective network distribution with reduced wiring and maintenance.
• Enhances system scalability and flexibility for future industrial expansions and upgrades.

Order Now

Elevate your industrial automation capabilities with the Beckhoff EL6614 4-port EtherCAT Ethernet switch terminal. Its robust design, compact footprint, and seamless integration make it an indispensable component for any modern industrial network. Ensure superior performance and effortless network expansion by securing your EL6614 today. We are proud to offer worldwide shipping, delivering this essential component directly to your facility, wherever you are.
