Beckhoff EL3602

Overview

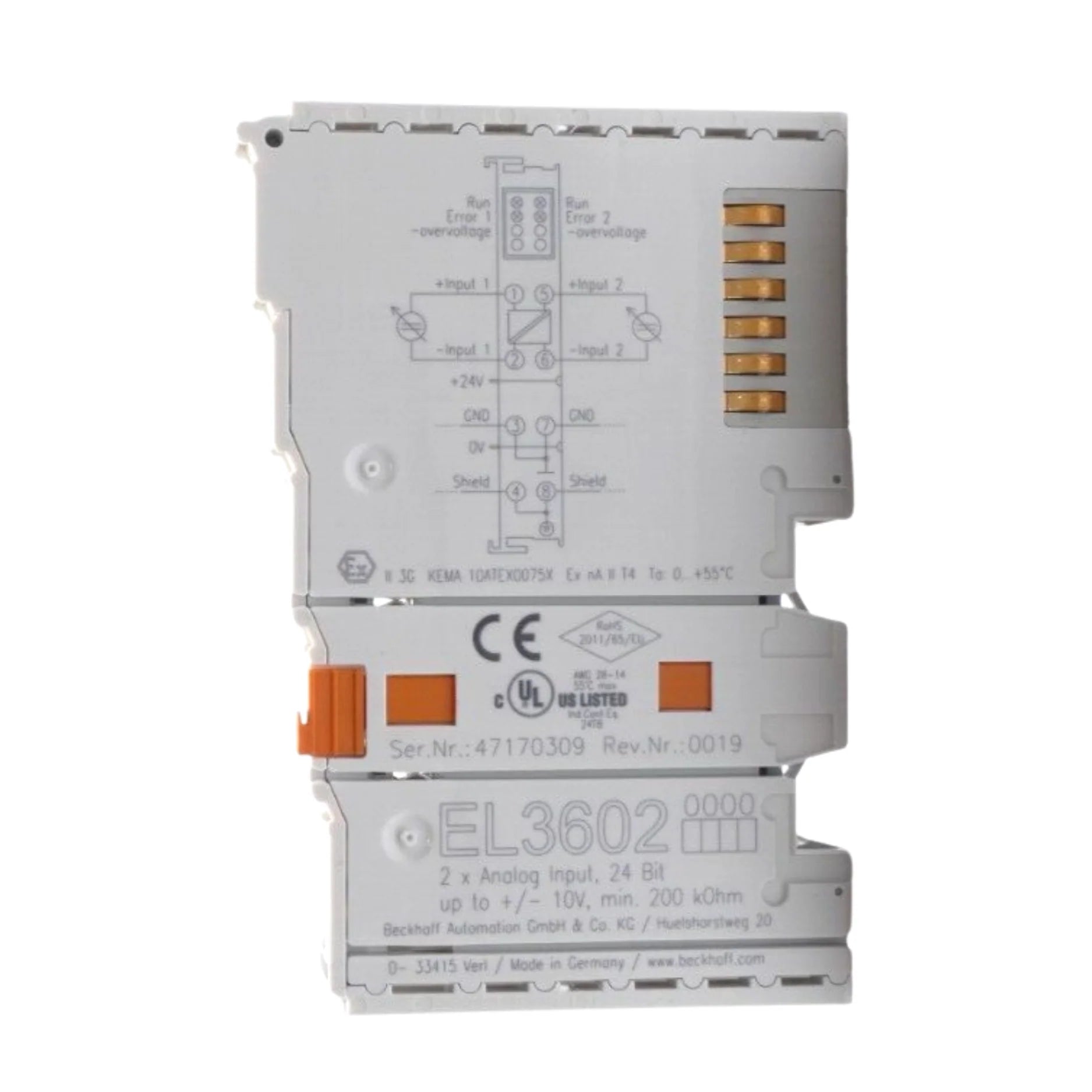

The Beckhoff EL3602 is a state-of-the-art 2-channel high-precision analog input terminal, meticulously engineered to seamlessly integrate with your EtherCAT I/O system. Part of Beckhoff's acclaimed EL series, this terminal is designed for applications demanding the utmost accuracy in signal acquisition. It precisely measures voltage signals within the crucial ±10 V range, boasting an exceptional 24-bit resolution. This unparalleled precision makes the EL3602 an indispensable component for sophisticated measurement systems, rigorous test stands, and critical process automation environments where data integrity and exact signal quality are paramount.

Key Features

• Two independent analog input channels for versatile data acquisition.
• Wide input voltage range of ±10 V, suitable for diverse industrial signals.
• Industry-leading 24-bit high-resolution measurement for superior accuracy.
• Robust electrical isolation of 500 V between I/O and the bus system, ensuring signal integrity and system protection.
• Compact 12 mm EtherCAT terminal housing, optimizing valuable cabinet space.
• Integrated diagnostic LEDs provide clear channel and status monitoring at a glance.
• Full and seamless integration with Beckhoff TwinCAT software for streamlined configuration and programming.

Technical Specifications

• Part Number: EL3602
• Manufacturer: Beckhoff
• Series: EL (EtherCAT Terminal)
• Channels: 2 analog inputs
• Input Range: ±10 V
• Resolution: 24-bit
• Electrical Isolation: 500 V (I/O to bus system)
• Housing Width: 12 mm
• Mounting: Standard DIN rail (as part of the EtherCAT Terminal system)
• Operating Temperature: –25 °C to +60 °C
• Bus System: EtherCAT
• Current Consumption (Internal): Typically 190 mA
• Configuration: Via TwinCAT software or EtherCAT configurators

Applications

• Precision measurement and control in complex process automation systems.
• High-accuracy data acquisition for laboratory and scientific testing equipment.
• Machine control requiring exact, high-resolution signal processing.
• Energy management and building automation systems where precise monitoring is essential.
• Integration into distributed EtherCAT I/O architectures for flexible system design.
• Quality control and inspection systems demanding highly accurate sensor feedback.

Why Choose This Model?

• Offers an outstanding 24-bit resolution, delivering unparalleled accuracy for the most demanding measurement tasks.
• Features a compact design with two integrated input channels, maximizing efficiency and minimizing footprint.
• Reliably supports ±10 V industrial voltage signals, ensuring compatibility with a wide range of sensors and transducers.
• Provides robust and reliable performance thanks to crucial electrical isolation, protecting your system and data.
• Backed by Beckhoff’s industry-leading EtherCAT technology, guaranteeing high-speed communication and real-time capabilities.
• Seamlessly integrates with Beckhoff TwinCAT software, simplifying commissioning and ongoing management.
• An ideal choice for critical applications where precision, reliability, and space efficiency are non-negotiable.

Order Now

Enhance your industrial automation and measurement capabilities with the Beckhoff EL3602 2-channel high-precision analog input terminal. Designed for accuracy, reliability, and seamless integration, this terminal is an essential investment for any system requiring superior signal acquisition. The Beckhoff EL3602 is readily available and ships worldwide, ensuring you can upgrade your operations no matter your location. Don't compromise on precision – secure your EL3602 today and experience the Beckhoff difference.
