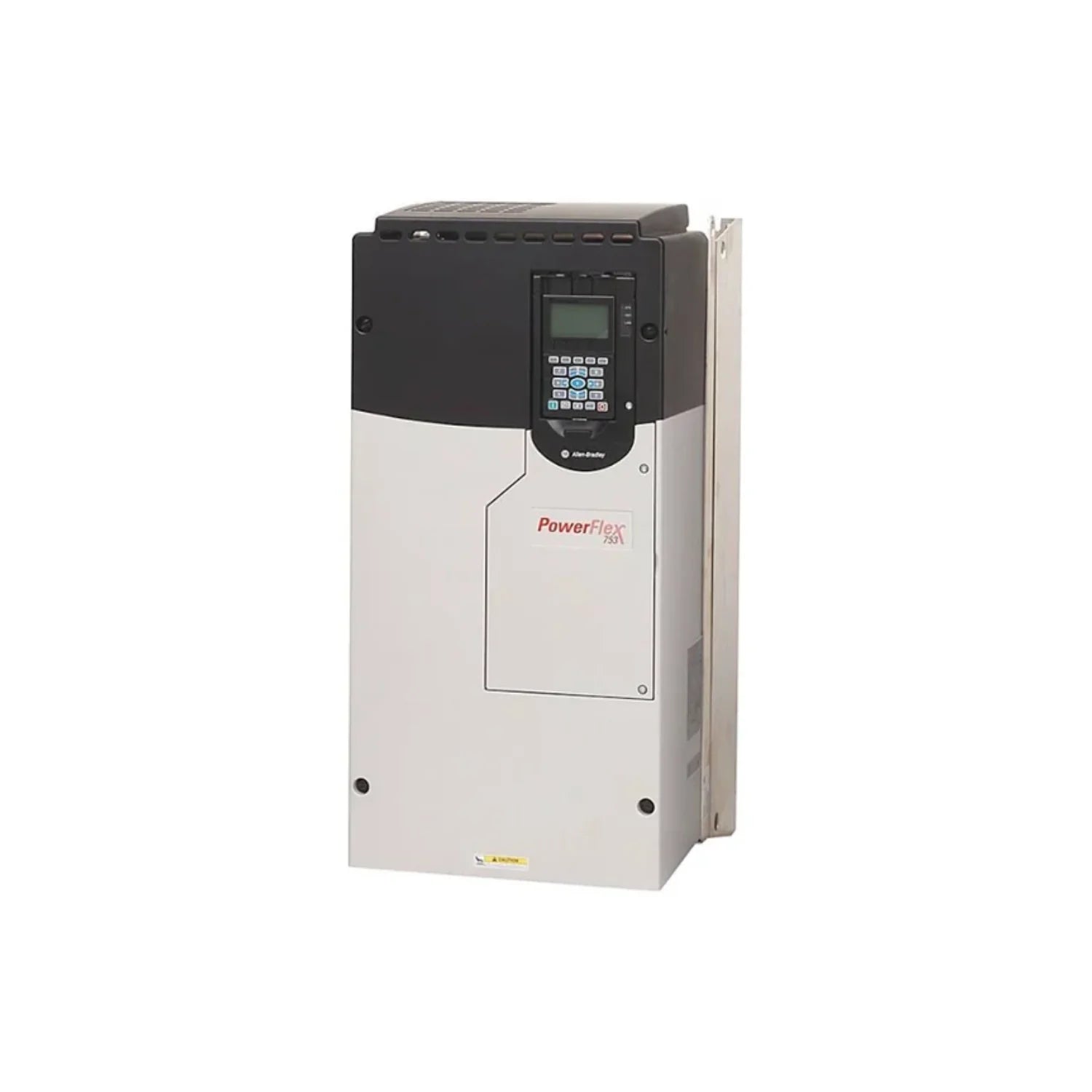

Allen-Bradley 20G11ND077AA0NNNNN

Overview

The Allen-Bradley 20G11ND077AA0NNNNN is a high-performance PowerFlex 755 AC Drive meticulously engineered for demanding industrial motor control environments. This robust drive, part of the renowned PowerFlex 755 series, is designed to deliver unparalleled precision, exceptional efficiency, and seamless network connectivity for a wide array of applications. Operating at 480V AC, 3-phase, it provides a powerful output of 77A, adeptly supporting 60HP for normal duty and 50HP for heavy-duty applications. Its advanced design incorporates features such as embedded EtherNet/IP communication and a filtered configuration, ensuring reliable and optimized performance in the most challenging operational scenarios. The absence of a Human Interface Module (HIM) emphasizes its integration into sophisticated, centralized control systems, requiring external programming interfaces for configuration and monitoring.

Key Features

• Optimized Power Output: Delivers 480V AC, 3-phase input with a robust 77A output, ideal for demanding industrial loads.
• Versatile Power Ratings: Supports 60HP for normal duty and 50HP for heavy-duty applications, ensuring adaptability across various operational requirements.
• Integrated EtherNet/IP: Features embedded EtherNet/IP communication for seamless integration into industrial automation networks, facilitating real-time monitoring and diagnostics.
• Enhanced Braking Capability: Equipped with a dynamic braking (DB) transistor to improve braking performance for high-inertia loads, ensuring safety and control.
• Reliable Filtration: Includes a filtered configuration that significantly reduces electrical noise, contributing to improved system stability and longevity.
• Robust Enclosure Design: Open-type enclosure is suitable for secure panel mounting within industrial cabinets, providing protection and accessibility.
• Durable Air-Cooled System: Features an efficient air-cooled design that ensures optimal heat dissipation, extending the lifespan and reliability of the drive.

Technical Specifications

• Model: 20G11ND077AA0NNNNN
• Series: PowerFlex 755
• Input Voltage: 480V AC
• Phase: 3-Phase
• Output Current: 77A
• Power Rating (Normal Duty): 60 HP
• Power Rating (Heavy Duty): 50 HP
• Cooling Method: Air Cooled
• Input Configuration: AC Input with DC Terminals
• Enclosure Type: Open
• Filter: Included
• Dynamic Braking Transistor: Yes
• Common Mode (CM) Jumper: Removed
• Communication: Embedded EtherNet/IP
• Human Interface Module (HIM): Not Included
• Mounting: Control Panel

Applications

• Precision Industrial Motor Control: Provides sophisticated variable speed control for a wide range of industrial motors, enhancing operational accuracy.
• Advanced Manufacturing & Automation Systems: Optimizes efficiency and boosts productivity in complex manufacturing and automated production lines.
• Pumps, Fans, & Compressors: Expertly supports motor-driven applications requiring precise variable frequency control for consistent performance.
• Material Handling & Conveyor Systems: Ensures remarkably smooth operation and superior torque management in all types of material handling and conveyor setups.
• High-Inertia Load Applications: Leverages dynamic braking capabilities to greatly improve performance and safety when handling substantial, high-inertia loads.
• HVAC Systems: Enables efficient and precise control of motors in heating, ventilation, and air conditioning systems, leading to energy savings and improved climate control.

Why Choose This Model?

• Unmatched Performance: The PowerFlex 755 series is renowned for its high-performance capabilities, ensuring reliable and precise motor control even in the most demanding industrial settings.
• Seamless Network Integration: With embedded EtherNet/IP, this drive offers superior connectivity, allowing for easy integration into existing automation networks and real-time data access.
• Enhanced Safety and Control: The integrated dynamic braking transistor provides critical safety and control by improving braking response for applications involving high-inertia loads.
• Optimized for Harsh Environments: Its filtered configuration and robust open-type enclosure are designed to withstand challenging industrial conditions, reducing electrical noise and ensuring long-term operational stability.
• Versatile and Adaptable: Capable of handling both normal and heavy-duty applications across a range of HP ratings, making it a flexible solution for diverse industrial needs.
• Trusted Allen-Bradley Quality: Benefit from the reliability, durability, and extensive support associated with the Allen-Bradley brand, a leader in industrial automation.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 20G11ND077AA0NNNNN PowerFlex 755 AC Drive. Experience superior motor control, enhanced efficiency, and robust connectivity. Order today to take advantage of our fast shipping and worldwide delivery options, and empower your operations with a cutting-edge solution designed for reliability and performance.
