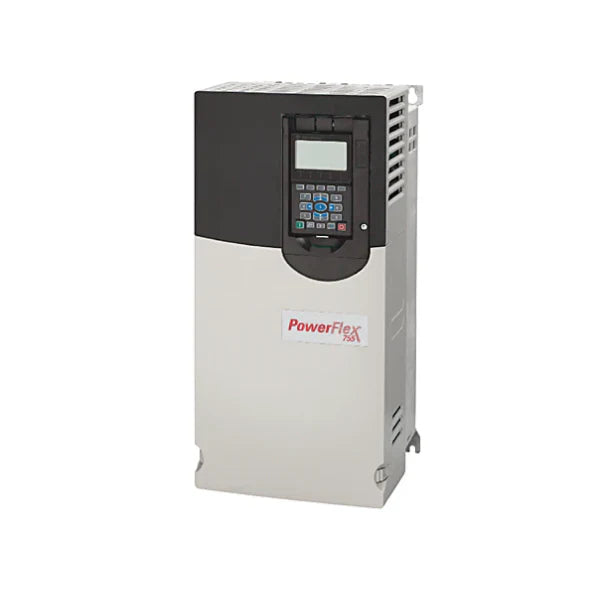

Allen Bradley 20G1ANF023JN0NNNNN

Overview

The Allen-Bradley PowerFlex 755 20G1ANF023JN0NNNNN AC Drive is a robust and versatile solution engineered for high-performance motor control in demanding industrial environments. Part of the highly acclaimed PowerFlex 755 series, this drive is specifically designed for 690V applications, offering unparalleled reliability and efficiency. Its integrated Ethernet/IP capabilities provide seamless network integration, facilitating advanced control, monitoring, and data acquisition. The 20G1ANF023JN0NNNNN is an air-cooled, open-type drive (IP00), requiring an appropriate enclosure for protection, making it a flexible choice for various industrial setups. With dual Normal Duty (ND) and Heavy Duty (HD) ratings, this drive effortlessly adapts to diverse load requirements, ensuring optimal performance across a wide spectrum of machinery and processes. This particular model, a Frame 6 drive, is built without DC terminals, emphasizing its dedicated AC operation at 690V.

Key Features

• Embedded Ethernet/IP: Facilitates seamless integration into EtherNet/IP networks for comprehensive control, advanced monitoring, and efficient data acquisition.
• 690V AC Input, 3-Phase: Optimized for industrial power systems requiring 690V, providing a crucial differentiator for specialized applications.
• Dual Rating (18.5kW ND / 15kW HD): Offers exceptional flexibility to accommodate varying load profiles and demanding application requirements.
• Air Cooled, Open Type (IP00): Efficient air cooling suitable for standard industrial settings (requires external enclosure for environmental protection).
• AC Input with Precharge: Ensures a smooth and controlled motor startup, significantly reducing stress on both the motor and drive components.
• Integrated Filtering: Minimizes electromagnetic interference (EMI), leading to improved system performance and enhanced reliability in industrial settings.
• CM Jumper Installed: Simplifies grounding procedures and significantly enhances electromagnetic compatibility (EMC) compliance. This preference ensures robust and stable operation.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G1ANF023JN0NNNNN
• Type: AC Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires enclosure for protection)
• Frame Size: 6
• Main Power Supply: 690 V AC, 3-Phase
• Current: 23 A
• Capacity: 18.5 kW (Normal Duty), 15 kW (Heavy Duty)
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Not Included
• Filtering: Included
• CM Jumper: Installed (Preferred)
• HIM (Human Interface Module): Not Included (Blank)
• Embedded Communications: Ethernet/IP
• DC Terminals: Not Included
• Operation: Designed exclusively for 690V AC systems.

Applications

• Pumps and Fans: Ideal for industrial processes, HVAC systems, and critical water/wastewater treatment plants.
• Conveyors and Material Handling Systems: Optimizes operations in manufacturing, warehousing, and complex logistics environments.
• Packaging Machinery: Enhances precision and efficiency in automated assembly lines and various packaging equipment.
• Machine Automation and Process Control: Provides robust and reliable control for intricate automated production systems.
• Textile and Woodworking Machinery: Suited for industrial equipment with demanding load profiles requiring precise motor control.
• Metalworking Machinery: Delivers consistent and powerful performance for robust metal fabrication applications.

Why Choose This Model?

• Superior PowerFlex 755 Series Performance: Benefit from the proven reliability and advanced features of a leading industrial drive series.
• Dedicated 690V Operation: Specifically engineered for high-voltage applications, ensuring optimal compatibility and performance without compromise.
• Integrated Ethernet/IP Connectivity: Streamline your operations with advanced networking capabilities for superior control, diagnostics, and data management.
• Versatile Dual Duty Ratings: Adapt effortlessly to a wide array of application demands with both Normal Duty and Heavy Duty power ratings.
• Enhanced System Reliability: Features like AC input with precharge, integrated filtering, and CM jumper installation contribute to stable and dependable operation.
• Robust Industrial Design: Built to withstand the rigors of industrial environments, ensuring longevity and consistent performance.

Order Now

Unlock the full potential of your industrial machinery with the Allen-Bradley PowerFlex 755 20G1ANF023JN0NNNNN AC Drive. Experience advanced motor control, seamless network integration, and unparalleled reliability for your 690V applications. Don't miss out on optimizing your operational efficiency and productivity. Contact us today or place your order to integrate this powerful solution into your system.
