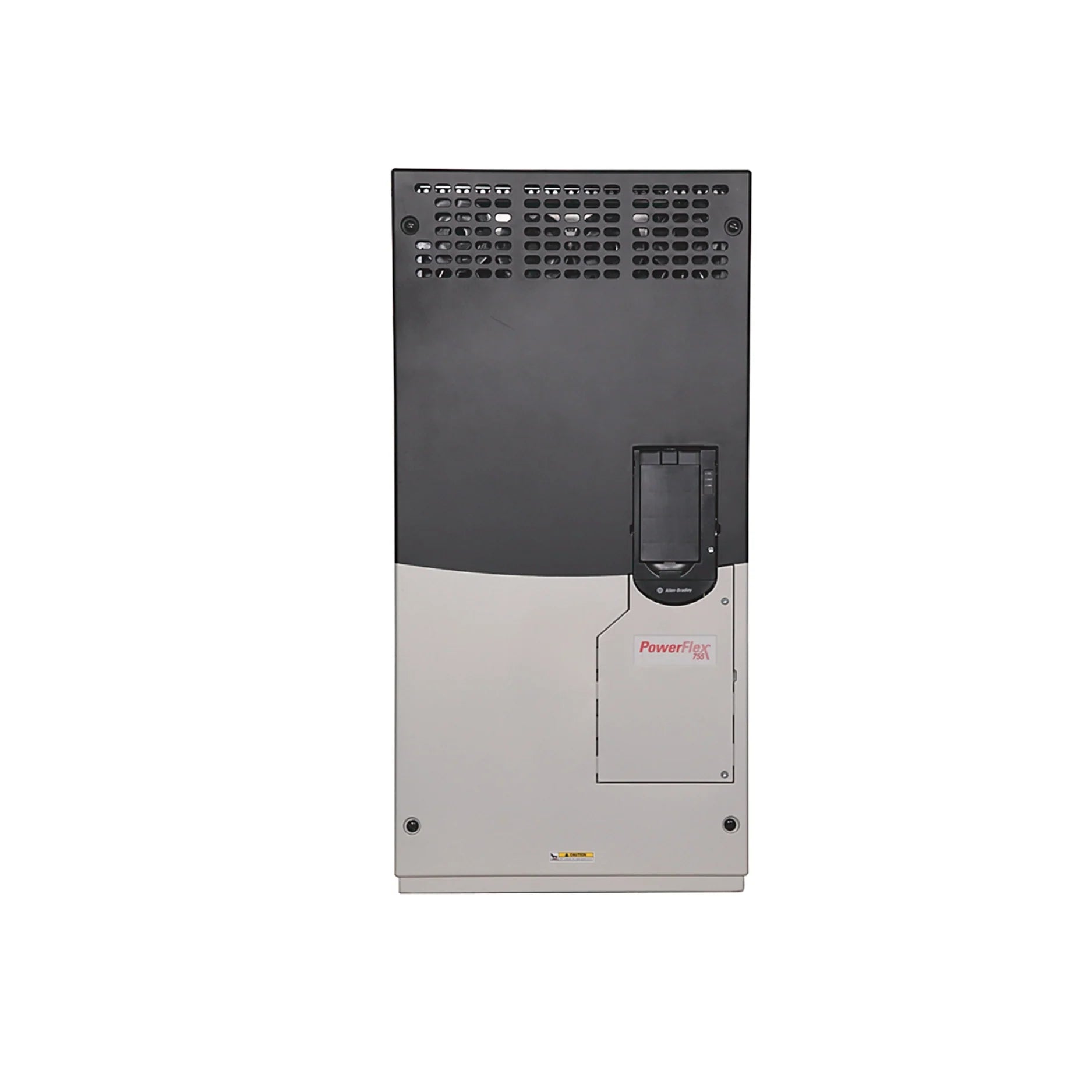

Allen Bradley 20G1ANC477JN0NNNNN

Overview

The Allen-Bradley PowerFlex 755 20G1ANC477JN0NNNNN AC Drive is an exceptionally robust and high-power solution engineered for the most demanding heavy industrial automation applications requiring massive and precise motor control. As part of the renowned PowerFlex 755 series, this drive is designed to deliver reliable, efficient, and sophisticated performance in scenarios where extreme power and advanced network integration are paramount. Its air-cooled, open-type design ensures that it can withstand rigorous operational conditions while offering the flexibility needed for diverse industrial environments. This particular model, a Frame 7 drive, represents the largest in its series, signifying its substantial capacity and ability to manage significant electrical loads. With an emphasis on seamless connectivity and powerful control capabilities, it ensures optimal operation for critical industrial processes.

Key Features

• Embedded EtherNet/IP: Provides seamless integration into EtherNet/IP networks for advanced control, monitoring, and data acquisition, streamlining communication across your industrial automation system.
• Dual Rating (270kW Normal Duty / 200kW Heavy Duty): Offers unparalleled flexibility to adapt to varying load profiles and extremely demanding application requirements, maximizing operational efficiency.
• 400V AC Input, 3-Phase: Ensures compatibility with standard high-power industrial electrical systems, facilitating straightforward integration into existing infrastructure.
• Air Cooled, Open Type (IP00): Designed for efficient cooling in standard industrial environments, ensuring sustained performance under challenging conditions (requires appropriate enclosure for protection).
• AC Input with Precharge: Guarantees smooth and controlled motor startup, significantly minimizing stress on both the motor and the drive components, thereby extending their operational lifespan.
• Integrated Filtering: Effectively reduces electromagnetic interference (EMI), leading to improved system performance and enhanced reliability within harsh industrial environments.
• CM Jumper Installed (Preferred): Simplifies grounding procedures and significantly enhances electromagnetic compatibility (EMC) compliance, contributing to a more stable and secure system.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G1ANC477JN0NNNNN
• Type: AC Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires enclosure for protection)
• Frame Size: 7
• Main Power Supply: 400 V AC, 3-Phase
• Current: 477 A
• Capacity: 270 kW (Normal Duty), 200 kW (Heavy Duty)
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Not Included
• Filtering: Included
• CM Jumper: Installed
• HIM (Human Interface Module): Not Included (Blank)
• Embedded Communications: Ethernet/IP
• DC Terminals: Not Included

Applications

• Very large-scale pumps and fans in critical infrastructure and industrial settings.
• High-power conveyors and material handling systems in mining, logistics, and manufacturing.
• Mills, extruders, and mixers in heavy process industries such as cement, pulp and paper, and plastics.
• Large compressors and blowers in oil and gas, petrochemicals, and general industrial air supply.
• Marine propulsion systems and heavy-duty cranes requiring precise and robust motor control.
• Water and wastewater treatment facilities for large-volume fluid management.

Why Choose This Model?

• Extreme Power and Precision Control: Handle the most demanding industrial loads with exceptional power and unrivaled control accuracy, ensuring optimal process performance.
• Seamless Network Integration: With embedded EtherNet/IP, integrate effortlessly into modern industrial networks, enabling advanced data exchange and remote management capabilities.
• Robust and Reliable Design: Built for endurance, its open-type, air-cooled design, combined with integrated filtering, ensures reliable operation in challenging industrial environments.
• Versatile Dual Rating: The 270kW Normal Duty and 200kW Heavy Duty ratings provide the flexibility needed to adapt to a wide array of application demands, maximizing utility.
• Optimized for Industrial Safety and Compliance: Features like AC Input with Precharge and CM Jumper installed contribute to enhanced operational safety and EMC compliance.
• Future-Proof Investment: Investing in a PowerFlex 755 drive means acquiring a solution that is ready for future industrial automation upgrades, ensuring long-term value.

Order Now

Elevate your industrial operations with the Allen-Bradley PowerFlex 755 20G1ANC477JN0NNNNN AC Drive. Experience the pinnacle of robust motor control, seamless network integration, and unparalleled reliability for your most critical applications. Contact DDPARTSSOLUTION today to secure this essential component for your high-power industrial needs and ensure your operations run with maximum efficiency and precision.
