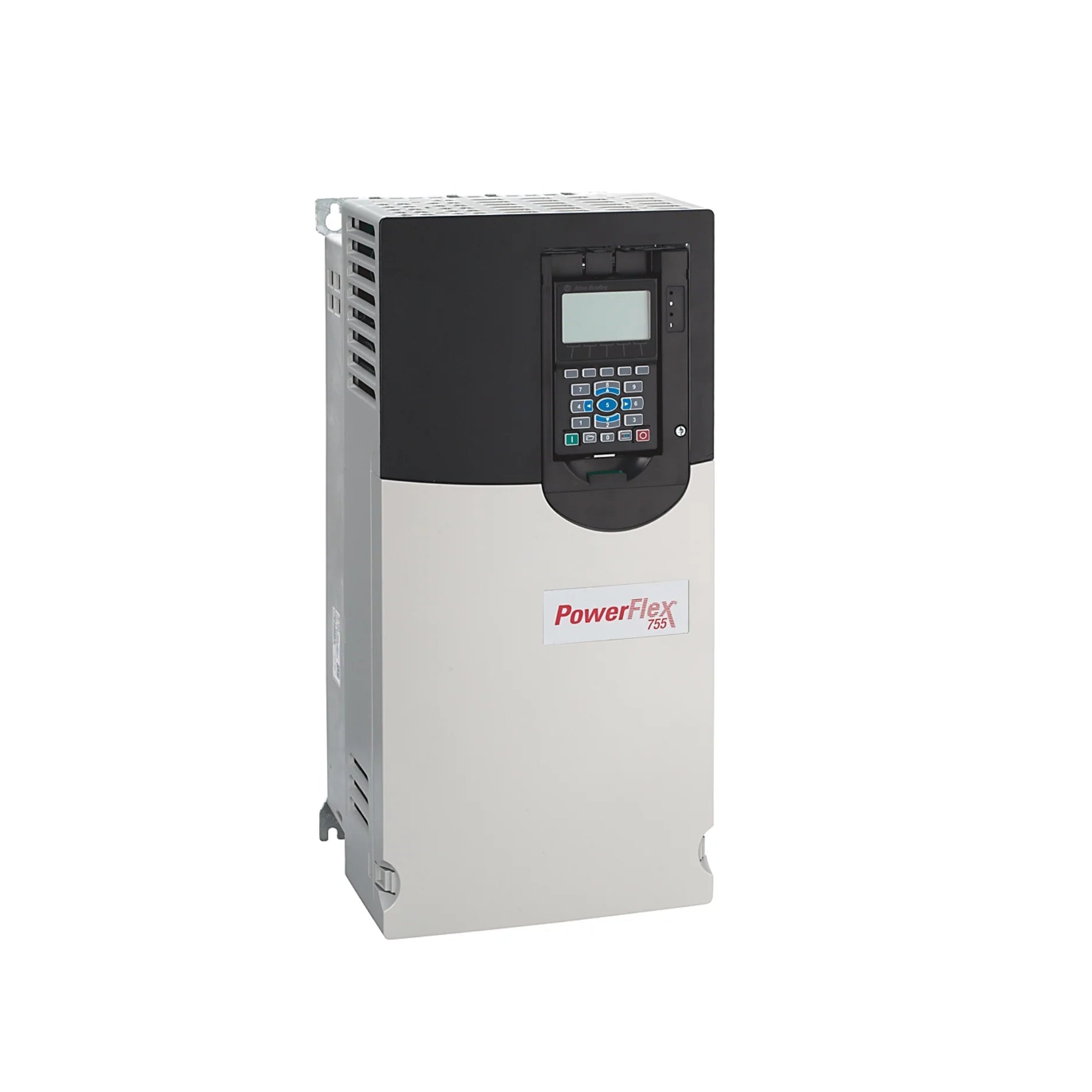

Allen Bradley 20G11NC085JA0NNNNN

Overview

Elevate your industrial automation with the Rockwell Automation PowerFlex 755 20G11NC085JA0NNNNN AC Packaged Drive. This high-power, robust solution is meticulously engineered for the most demanding heavy industrial applications where substantial and precise motor control is paramount. As part of the esteemed PowerFlex 755 series, this drive stands as a testament to Rockwell Automation's commitment to reliability and efficiency. This particular model, a Frame 5 drive, signifies its capacity for high-power output and rugged construction, making it an ideal choice for large-scale operations. Its advanced design, including dual Normal Duty (ND) and Heavy Duty (HD) ratings, provides unparalleled versatility, ensuring optimal performance across a wide spectrum of challenging load requirements. From large-scale pumps to heavy-duty material handling, this AC drive delivers consistent and powerful motor management.

Key Features

• Air Cooled, Open Type (IP00): Features efficient air cooling, suitable for integration into standard industrial environments requiring an appropriate protective enclosure.
• 400V AC Input, 3-Phase: Designed for seamless compatibility with common and robust industrial power systems, ensuring wide applicability.
• Dual Rating (45kW Normal Duty / 37kW Heavy Duty): Offers exceptional flexibility for diverse load profiles, catering to both continuous and intermittent heavy-duty application demands.
• AC Input with Precharge: Guarantees smooth, controlled motor startup sequences, significantly reducing mechanical and electrical stress on components.
• Integrated Filtering: Minimizes electromagnetic interference (EMI), enhancing system stability, performance, and overall reliability in complex industrial settings.
• CM Jumper Installed: Simplifies grounding configurations and bolsters electromagnetic compatibility (EMC) compliance, crucial for industrial safety and performance.
• Built-in DB Transistor: Facilitates dynamic braking, allowing for rapid deceleration and precise stopping of motors, essential for critical control applications.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G11NC085JA0NNNNN
• Type: AC Packaged Drive (Frame 5)
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires external enclosure for protection)
• Main Power Supply: 400 V AC, 3-Phase
• Current: 85 A
• Capacity: 45 kW (Normal Duty), 37 kW (Heavy Duty)
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Included
• Filtering: Included
• CM Jumper: Installed
• HIM (Human Interface Module): Not Included (Blank)

Applications

• Large-scale Pumps and Fans: Ideal for demanding industrial processes, HVAC systems, and critical water/wastewater treatment plants requiring high-power flow control.
• Heavy-duty Conveyors and Material Handling Systems: Perfect for manufacturing, warehousing, large-scale logistics, and mining operations that rely on robust and continuous material movement.
• Large Packaging Machinery and Automated Assembly Lines: Powers complex automated production equipment and high-demand machinery where precision and reliability are paramount.
• High-power Machine Automation and Process Control: Suited for industrial environments requiring sophisticated control strategies and powerful motor management.
• Heavy-duty Textile Machinery: Provides the necessary power and control for large-scale textile production equipment.
• Steel and Metal Processing: Controls heavy machinery in steel mills and metal fabrication, ensuring smooth and efficient operation.

Why Choose This Model?

• Exceptional Power and Performance: Delivers superior motor control for the most intensive industrial applications, ensuring maximum productivity.
• Versatile Dual Rating: Adapts seamlessly to varying load requirements, providing flexibility for diverse operational demands and maximizing equipment utilization.
• Enhanced Reliability: Integrated features like precharge, filtering, and a CM jumper contribute to stable operation and extended equipment lifespan, reducing downtime.
• Simplified Integration: As a packaged drive, it includes essential components, streamlining installation processes and leading to quicker deployment and reduced setup costs.
• Robust "Frame 5" Construction: Built to withstand harsh industrial environments, ensuring durability and consistent performance in challenging conditions.
• Precise Control Capabilities: The built-in DB transistor enables dynamic braking, offering precise control over motor stopping for enhanced process accuracy and safety.

Order Now

Invest in the unparalleled power and precision of the Allen-Bradley PowerFlex 755 20G11NC085JA0NNNNN AC Packaged Drive. Designed for the most demanding high-power industrial applications, this drive ensures optimal motor control, efficiency, and reliability. Enhance your operational capabilities and secure a competitive edge by integrating this robust solution into your automation systems. Contact us today or place your order to experience the difference a truly high-performance AC drive can make.
