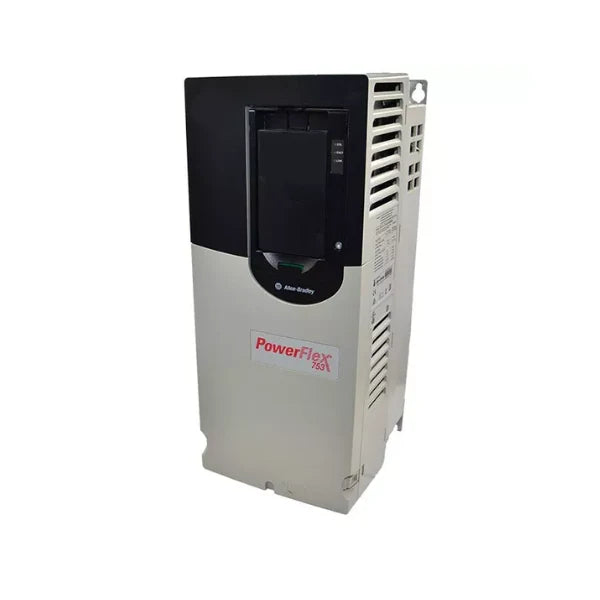

Allen-Bradley 20F11ND040AA0NNNNN

Overview

The Allen-Bradley 20F11ND040AA0NNNNN is a robust and versatile PowerFlex 753 AC Drive, meticulously engineered to optimize motor control in a broad spectrum of industrial applications. As a cornerstone of the acclaimed PowerFlex 753 series, this drive delivers exceptional performance, reliability, and flexibility. It is designed to handle demanding operational environments, providing precise speed and torque control for 3-phase AC motors. Its integrated features and high-quality construction make it an ideal choice for businesses seeking to enhance efficiency and productivity within their automated systems. Whether you are managing pumps, fans, conveyors, or complex machinery, the 20F11ND040AA0NNNNN provides the dependable control you need.

Key Features

• High-Performance Control: Part of the PowerFlex 753 series, offering advanced motor control and superior operational flexibility.
• Integrated I/O Capabilities: Features embedded digital and analog I/O, simplifying system integration and potentially reducing the need for additional external modules.
• Efficient Air Cooling: Utilizes an internal air-cooling system, which contributes to ease of installation and straightforward maintenance procedures.
• Wide Power Compatibility: Designed for 480V AC, 3-phase input, ensuring compatibility with standard industrial power infrastructures.
• Internal EMC Filtering: Equipped with an internal filter to effectively mitigate electromagnetic interference, promoting system stability and compliance.
• Dynamic Braking Transistor: Includes a built-in DB transistor, enabling dynamic braking functionality when paired with an external braking resistor for rapid motor deceleration.
• Flexible Horsepower Ratings: Offers 30 HP for normal duty and 25 HP for heavy-duty applications, allowing for tailored performance based on operational load.

Technical Specifications

• Model Number: 20F11ND040AA0NNNNN
• Series: Allen-Bradley PowerFlex 753
• Product Type: AC Drive / Variable Frequency Drive (VFD)
• Input Voltage: 480V AC, 3-Phase
• Output Current: 40 Amps
• Power Rating (Normal Duty): 30 HP
• Power Rating (Heavy Duty): 25 HP
• Enclosure Type: Open Type (IP00/NEMA Open)
• Cooling Method: Air Cooled
• Filtering: Internal EMC Filter (filtered)
• CM Jumper: Removed (consult manual for specific configuration implications)
• Dynamic Braking: Built-in DB Transistor included
• Frame Size: Frame 3
• Input Terminals: AC Input with DC Terminals

Applications

• Pumping Systems: Ideal for controlling flow and pressure in various pump applications, from water treatment to industrial fluid management.
• Fan and Blower Systems: Optimizes air movement and ventilation in HVAC, industrial exhaust, and drying processes.
• Conveyor Systems: Provides smooth and precise control for material handling, improving throughput and reducing wear on mechanical components.
• Material Handling Equipment: Suitable for a range of machinery including hoists, cranes, and automated storage and retrieval systems.
• General Machine Control: Versatile enough for integration into a wide array of industrial machines requiring reliable motor speed and torque regulation.
• HVAC Systems: Enhances energy efficiency and climate control in large-scale heating, ventilation, and air conditioning installations.

Why Choose This Model?

• Exceptional Reliability: Built by Allen-Bradley, a leader in industrial automation, ensuring high standards of quality and performance.
• Cost-Effective Solution: The embedded I/O and internal filtering can reduce overall system complexity and installation costs.
• Enhanced Productivity: Precise motor control contributes to optimized process flow and increased operational output.
• Energy Efficiency: Variable frequency drives like the PowerFlex 753 help minimize energy consumption by matching motor speed to application demand.
• Versatile Integration: Its open-type enclosure and AC input with DC terminals provide flexibility for integration into various control panel designs.
• Long-Term Value: Designed for durability and longevity, offering a sound investment for sustained industrial operations.

Order Now

Elevate your industrial processes with the Allen-Bradley 20F11ND040AA0NNNNN PowerFlex 753 AC Drive. Benefit from its advanced features, robust design, and proven performance. Secure this essential component for your automation needs today and experience the difference in control and efficiency. Contact DD Parts Solution for competitive pricing, fast shipping, and expert support to ensure seamless integration into your systems.
