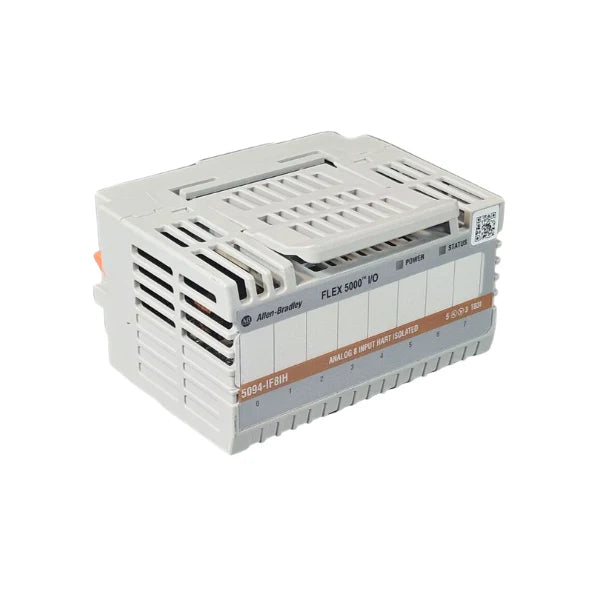

Allen-Bradley 5094-IF8IH

Overview

The Allen-Bradley 5094-IF8IH is a high-performance 8-channel analog input module, an integral component of the advanced FLEX 5000 I/O family. Engineered for demanding industrial environments, this module provides eight individually isolated analog inputs, making it incredibly versatile for a wide array of sensor types, including both current (4-20mA) and voltage signals. A standout feature is its robust support for HART communication, enabling intelligent interaction with field devices for enhanced diagnostics and remote configuration. The galvanic isolation between channels and the control system is paramount, ensuring superior immunity to electrical noise and safeguarding connected equipment from potential damage due to ground loops or voltage differences. This module is designed for seamless integration into the FLEX 5000 distributed I/O system, offering unparalleled flexibility and reliability for modern industrial automation applications. DD Parts Solution is your trusted source for this critical component, offering both new and, when available, meticulously inspected used/refurbished units to meet your project's specific needs and budget.

Key Features

• 8 Isolated Analog Input Channels: Provides high channel density and individual channel isolation for increased system reliability and noise immunity.
• HART Communication Support: Enables bidirectional digital communication with HART-enabled field devices for advanced diagnostics, parameterization, and asset management.
• Galvanic Isolation: Offers superior protection against electrical noise, ground loops, and potential differences, ensuring signal integrity and equipment longevity.
• Flexible Signal Input: Supports a wide range of current (4-20mA) and voltage (+/-10V, 0-10V, 0-5V) input signals, accommodating diverse sensor applications.
• FLEX 5000 I/O Compatibility: Seamlessly integrates into the modular and scalable FLEX 5000 distributed I/O system, enhancing system architecture flexibility.
• Advanced Diagnostics: Leverage HART communication for in-depth diagnostic data from your intelligent field devices, improving troubleshooting and preventive maintenance.

Technical Specifications

• Product Type: Analog Input Module with HART
• Catalog Number: 5094-IF8IH
• Series: FLEX 5000 I/O
• Number of Inputs: 8
• Input Type: Current (4-20mA), Voltage (+/-10V, 0-10V, 0-5V) - Always consult official Rockwell Automation documentation for precise details.
• Isolation: Channel-to-channel and channel-to-system galvanic isolation
• Communication: HART (Highway Addressable Remote Transducer)
• Resolution: Refer to official Rockwell Automation documentation for specific details.
• Accuracy: Refer to official Rockwell Automation documentation for specific details.
• Mounting: DIN Rail
• Operating Temperature: Refer to official Rockwell Automation documentation.

Applications

• Continuous Process Control: Ideal for precise monitoring of critical process variables such as pressure, temperature, flow, and level in industries like oil & gas, chemicals, and pharmaceuticals.
• Data Acquisition Systems: Suitable for high-accuracy data collection from various analog sensors in industrial automation and research applications.
• Hazardous Area Monitoring: Its robust isolation capabilities make it well-suited for applications where high noise immunity and equipment protection are crucial.
• Remote I/O Solutions: Perfect for expanding control systems in geographically dispersed or hard-to-reach locations within a FLEX 5000 system.
• Advanced Diagnostics Integration: Leveraged in applications requiring detailed insights and remote configuration of HART-enabled smart field devices.
• Water and Wastewater Treatment: Monitoring and control of numerous analog signals from instrumentation in purification and distribution systems.

Why Choose This Model?

• Unmatched Reliability: Benefit from Allen-Bradley's reputation for industrial-grade quality and the inherent robustness of the FLEX 5000 platform.
• Enhanced System Protection: Galvanic isolation provides superior defense against electrical interference and potential damage, extending the lifespan of your equipment.
• Intelligent Device Integration: HART communication streamlines commissioning, maintenance, and diagnostics for smart field devices, reducing downtime and operational costs.
• Versatile Application Support: Its ability to handle both current and voltage inputs with high accuracy makes it adaptable to a wide array of sensor technologies and industrial processes.
• Seamless Scalability: As part of the FLEX 5000 family, this module offers effortless integration and expansion within a flexible, distributed I/O architecture.
• DD Parts Solution Advantage: Gain access to competitive pricing, fast and reliable shipping, and exceptional customer service from a trusted USA-based supplier of industrial automation components.

Order Now

Elevate your industrial control system's performance and reliability with the Allen-Bradley 5094-IF8IH Analog Input Module. Experience superior signal integrity, advanced diagnostics, and seamless integration for your most demanding applications. Contact DD Parts Solution today for current availability, pricing, and to secure this essential component for your next project. Our dedicated team is ready to assist you in optimizing your automation infrastructure.
