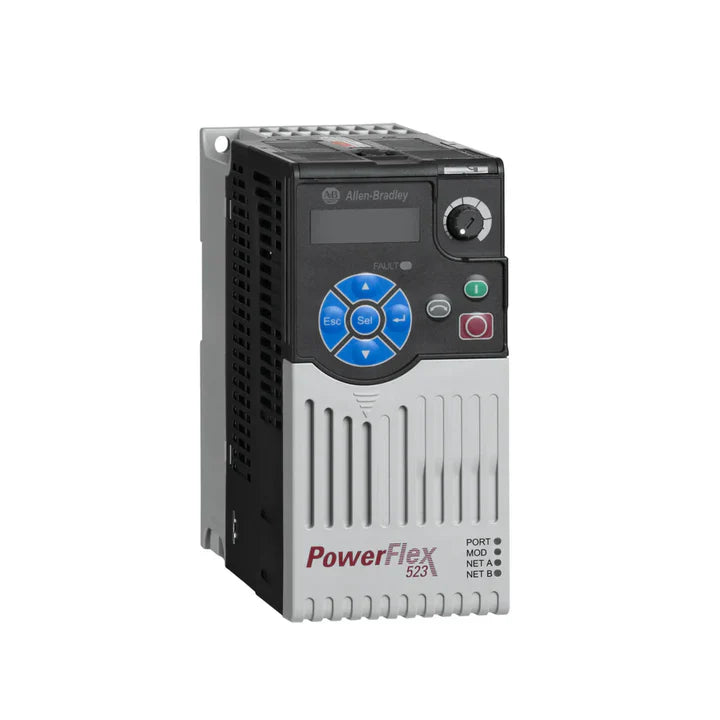

Allen-Bradley 25A-D2P3N114

Overview

The Allen-Bradley 25A-D2P3N114 is a robust PowerFlex 523 AC Drive, meticulously engineered to provide exceptional motor control in a wide array of industrial applications. As part of the renowned PowerFlex 523 series, this drive stands out for its optimal blend of performance, versatility, and cost-effectiveness. It is specifically designed to manage the speed and torque of 1.0HP (0.75kW) motors, operating efficiently with a 480V AC three-phase input. Ideal for environments demanding precise motor regulation and reliable operation, the 25A-D2P3N114 ensures seamless integration and superior performance, enhancing overall system productivity and energy efficiency.

This drive is built with an emphasis on ease of use and durability, making it a preferred choice for engineers and operators alike. Its compact footprint, coupled with advanced features, allows for flexible installation in various industrial settings. The PowerFlex 523 series is celebrated for its modular design, which simplifies both installation and maintenance, reducing downtime and operational costs. The 25A-D2P3N114 exemplifies this design philosophy, offering a powerful yet user-friendly solution for demanding motor control tasks, from basic speed regulation to more complex operational requirements in modern automation systems.

Key Features

• Optimized Motor Control: Provides precise speed and torque regulation for 1.0HP (0.75kW) motors, ensuring efficient and stable operation.
• High Voltage Compatibility: Operates efficiently with a 480V AC three-phase input, suitable for a broad range of industrial power systems.
• Integrated EMI Filter: Equipped with a built-in filter to enhance electromagnetic compatibility, ensuring smooth and reliable performance in electromagnetically sensitive environments.
• Compact & Space-Saving Design: Features a compact footprint and IP20 NEMA Open Type enclosure, ideal for panel mounting in tight industrial spaces, optimizing cabinet utilization.
• Intuitive Configuration: Offers streamlined programming and simplified start-up procedures, reducing commissioning time and effort.
• Flexible Mounting Options: Designed for versatile panel mounting, allowing for easy integration into existing or new control panels.
• Durable Industrial Grade: Built to withstand commercial and industrial environments, ensuring long-term reliability and reduced maintenance needs.

Technical Specifications

• Model: 25A-D2P3N114
• Series: PowerFlex 523 AC Drive
• Motor Power: 1.0HP (0.75kW)
• Input Voltage: 480V AC
• Current Rating: 2.3A
• Phase: Three Phase
• Protection Class: IP20 / NEMA Open Type
• Frame Size: A
• Mounting Type: Panel Mount
• Integrated Filter: Yes
• Communication: Standard I/O (digital and analog), RS485 communication
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Humidity: 0% to 95% non-condensing
• Approvals: UL, cUL, CE, RCM, KCC

Applications

• Conveyor Systems: Provides precise speed control for material handling operations, improving throughput and reducing wear.
• Fans and Blowers: Optimizes air flow and energy consumption in HVAC systems and industrial ventilation.
• Pumps: Ensures efficient fluid transfer and pressure regulation in water treatment, chemical processing, and irrigation systems.
• Compressors: Enhances energy efficiency and extends equipment life by precisely controlling motor speed in various compressed air applications.
• Packaging Machinery: Delivers accurate motion control for improved production consistency and reduced product damage.
• Machine Tools: Offers reliable speed and torque control for various machining processes, enhancing precision and operational efficiency.

Why Choose This Model?

• Unmatched Reliability: Allen-Bradley's reputation for quality means enduring performance in demanding industrial settings.
• Enhanced Energy Efficiency: Variable frequency drives significantly reduce energy consumption, leading to substantial cost savings over time.
• Precise Control: Achieve superior control over motor speed and torque, crucial for optimizing manufacturing processes and product quality.
• Simplified Integration: Designed for easy setup and compatibility, minimizing installation time and complexity.
• Robust Protection: Features like IP20 enclosure and integrated filter provide crucial protection and operational longevity.
• Global Support: Benefit from Allen-Bradley's extensive global support network, ensuring assistance when you need it.

Order Now

Upgrade your industrial motor control systems with the Allen-Bradley 25A-D2P3N114 PowerFlex 523 AC Drive. Experience the difference in precision, efficiency, and reliability that only a leader in automation technology can provide. Invest in superior performance today and optimize your operational output. Secure your 25A-D2P3N114 model now to take advantage of its advanced features and ensure seamless, high-performance motor control in your critical industrial applications.
