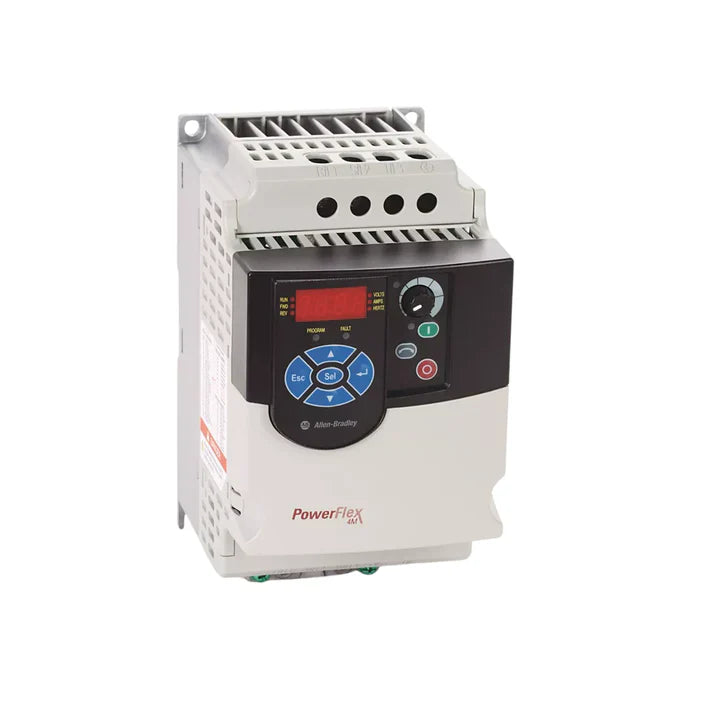

Allen-Bradley 22F-D024N104

Overview

The Allen-Bradley 22F-D024N104 PowerFlex 4M AC Drive is a highly efficient and economical solution engineered for precise control of AC motors across a diverse range of basic industrial applications. Part of the renowned PowerFlex 4M series, this compact drive is robustly designed to deliver reliable performance, making it an ideal choice for operations requiring a balance of cost-effectiveness and functionality. With its 15 HP (11 kW) power rating and 24 Amp output, it's perfectly suited for applications running on a 480V AC three-phase input. The 22F-D024N104 stands out for its simplicity of integration and operation, providing essential motor control capabilities without unnecessary complexity, thus streamlining your industrial processes.

Key Features

• Compact & Economical Design: Optimal for space-constrained industrial environments and budget-conscious projects.
• 15 HP (11 kW) Power Rating: Delivers robust performance for a wide array of general-purpose motor tasks.
• 480V AC, 3-Phase Input: Seamless compatibility with standard industrial power infrastructures.
• 24 Amp Output Current: Ensures reliable power delivery to your connected motors.
• IP20 (Open Type) Enclosure: Designed for secure installation within protected control panels or enclosures.
• Fixed LED Display: Provides clear and immediate visual feedback on drive status and essential parameters.
• Fixed Human Interface Module (HIM): Integrated for straightforward setup and configuration, simplifying user interaction.

Technical Specifications

• Catalog Number: 22F-D024N104
• Series: PowerFlex 4M AC Drive
• Input Voltage: 380-480V AC, 3-Phase, 50/60 Hz
• Output Voltage: 0-Input Voltage, 3-Phase
• Output Current: 24 Amps
• Power Rating: 15 HP (11 kW)
• Frame Size: C
• Enclosure Type: IP20 (Open Type)
• Cooling Method: Convection/Heatsink
• Display: Fixed LED Display
• Human Interface: Fixed HIM (Integral)

Applications

• Simple material handling systems and conveyors.
• Pumps and fans in light industrial settings.
• Basic machinery and equipment requiring speed control.
• Heating, ventilation, and air conditioning (HVAC) systems.
• Textile and packaging machinery with straightforward control needs.
• General industrial applications where advanced control features are not a priority.

Why Choose This Model?

• Cost-Effective Performance: Achieve reliable motor control without overspending, providing excellent value.
• Space-Saving Design: Its compact footprint allows for efficient use of valuable control panel space.
• Ease of Use: Simple setup and configuration minimize installation time and operational complexities.
• Immediate Availability: In stock and ready to ship, reducing downtime and accelerating project timelines.
• Durability and Reliability: Engineered by Allen-Bradley, a trusted name in industrial automation, ensuring long-term dependable operation.
• Optimized for Basic Control: Perfectly suited for applications where straightforward motor speed and direction control are paramount.

Order Now

Elevate your industrial motor control with the Allen-Bradley 22F-D024N104 PowerFlex 4M AC Drive. Its blend of cost-effectiveness, compact design, and dependable performance makes it an intelligent investment for your basic industrial applications. Don't miss out on the opportunity to enhance your operational efficiency. Order today from DD Parts Solution for competitive pricing, fast shipping, and expert support, ensuring you receive a premium product and service experience.
