Allen-Bradley 22D-D017N104

Overview

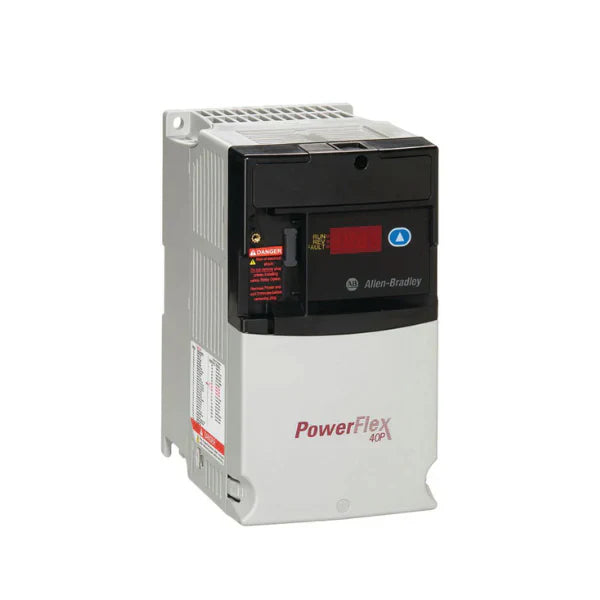

The Allen-Bradley 22D-D017N104 is a robust PowerFlex 40P AC Drive engineered for superior motor control in a wide array of industrial environments. As part of the highly regarded PowerFlex 40P series, this drive is specifically designed to provide precise and efficient variable speed operation for 3-phase motors. With its 480V AC input and 17A output, it perfectly accommodates 10 HP motors, ensuring optimal performance and energy efficiency. The drive's compact Frame C and Panel Mount IP20 (NEMA Type Open) enclosure make it a versatile choice for seamless integration into existing control panels, offering a reliable solution for modern automation needs. This particular model focuses on core functionality with a Display Reset Only interface and is supplied without a CE-compliant filter, offering a streamlined, high-value solution for applications where full CE compliance is not a primary requirement, yet robust control is essential.

Key Features

• High Voltage Input: Operates efficiently with 480V AC, 3-Phase power, ideal for industrial settings.
• Output Current: Delivers a strong 17A output, ensuring consistent power to connected motors.
• Versatile Power Rating: Supports 10 HP (Normal Duty) and 7.5 kW (Heavy Duty) applications.
• Compact Design: Features an optimized Frame Size C for space-saving installations.
• Durable Enclosure: Panel Mount IP20 (NEMA Type Open) for secure and protected integration.
• Simplified Interface: Display Reset Only for straightforward setup and operation.
• Integrated Braking: Includes a DB Transistor for effective motor braking (requires external resistor).

Technical Specifications

• Model: 22D-D017N104
• Series: PowerFlex 40P
• Input Voltage: 480V AC
• Phase: 3-Phase
• Output Current: 17A
• Power Capacity: 10 HP (Normal Duty) / 7.5 kW
• Enclosure Type: Panel Mount, IP20 (NEMA Type Open)
• Control Interface: Display Reset Only
• Braking: Integrated DB Transistor (External Resistor Required)
• Filter: No CE-Compliant Filter
• Certifications: UL, cUL, RoHS

Applications

• Material Handling & Conveyor Systems: Provides precise speed control for optimized material flow.
• Pumps & Fans: Enhances energy efficiency and maintains consistent pressure or airflow.
• Packaging & Food Processing Equipment: Ensures smooth and reliable operation in critical production lines.
• HVAC Systems: Regulates air handling and ventilation systems for improved environmental control.
• General Industrial Automation: Suitable for a broad spectrum of motor-driven processes requiring variable speed.
• Textile Machinery: Offers accurate control for various textile manufacturing processes.

Why Choose This Model?

• Reliable Performance: Engineered by Allen-Bradley for consistent and dependable operation in demanding industrial settings.
• Energy Efficiency: Optimizes motor speed, leading to reduced energy consumption and operational costs.
• Precise Control: Offers superior motor speed and torque adjustments for enhanced process accuracy.
• Space-Saving Design: Its compact Frame C allows for flexible installation in tight spaces.
• Cost-Effective Solution: Provides essential functionality without the added cost of a CE filter for non-CE applications.
• Broad Application Range: Versatile enough for use across numerous industries and motor control tasks.

Order Now

Experience the benefits of precise motor control and enhanced operational efficiency. Secure your Allen-Bradley 22D-D017N104 PowerFlex 40P AC Drive today and elevate your industrial automation capabilities. Benefit from fast shipping and worldwide delivery options to get your essential components when you need them most.
