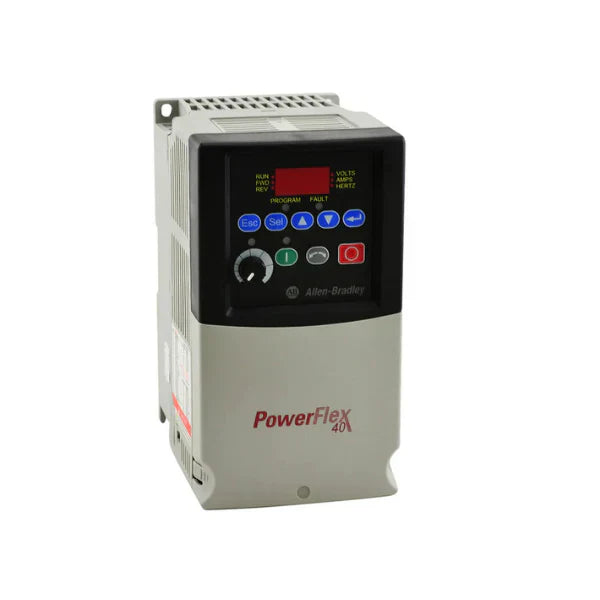

Allen-Bradley 22B-D6P0N104

Overview

The Allen-Bradley 22B-D6P0N104 PowerFlex 40 AC Drive is a robust and compact solution engineered for precise industrial motor control. Part of the renowned PowerFlex 40 series, this drive is celebrated for its exceptional balance of performance, affordability, and space-saving design, making it an ideal choice for a wide spectrum of small-to-medium motor applications. Operating at 480V AC with a three-phase input and delivering a potent 6A output current, this unit capably handles motors up to 2.2 kW (3 HP), ensuring efficient and reliable operation in diverse industrial automation environments. Its thoughtful design prioritizes ease of use and seamless integration, making it a cornerstone for optimizing machinery performance and reducing operational complexities. This drive represents Allen-Bradley's commitment to delivering high-quality, dependable components that foster productivity and support dynamic industrial processes.

Featuring an IP20 open-type enclosure, the 22B-D6P0N104 is perfectly suited for panel-mounted installations where controlled environmental conditions prevail. The integrated digital LED display and intuitive keypad significantly simplify setup, configuration, and real-time monitoring. Furthermore, its RS485 communication capability facilitates effortless integration into existing industrial networks, allowing for streamlined control and data exchange. This combination of powerful specifications and user-centric features positions the PowerFlex 40 as a superior choice for enhancing the control and efficiency of various motor-driven systems.

Key Features

• Optimized Performance: Delivers 2.2 kW (3 HP) at 480V AC, 3-phase, 6A, for reliable motor control.
• Compact & Efficient Design: Frame Size B ensures a space-saving footprint for panel mounting.
• User-Friendly Interface: Digital LED display with an integrated keypad for easy setup and operation.
• Versatile Connectivity: RS485 communication port for seamless system integration.
• Robust Enclosure: IP20 open-type rating suitable for protected industrial environments.
• Simplified Programming: Features grouped parameters for quick and efficient initial setup.
• Software Compatibility: Supports DriveExplorer™ & DriveExecutive™ for advanced monitoring and control.

Technical Specifications

• Model: 22B-D6P0N104
• Series: PowerFlex 40
• Voltage Input: 480V AC, Three-Phase
• Output Current: 6 Amperes (A)
• Motor Power Rating: 2.2 kW (3 HP)
• Enclosure Rating: IP20 (Open-Type)
• Control Type: Volts per Hertz (V/Hz) Control
• Communication Protocol: RS485
• Filter: No CE-Compliant Filter
• Keypad Type: Digital Keypad with LED Display
• Mounting: Panel Mount
• Frame Size: B
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Certification: UL, cUL listed
• Protection: Overload, overvoltage, undervoltage, short circuit protection

Applications

• Industrial Motor Control: Ideal for general-purpose small to medium-sized motors.
• HVAC Systems: Enhances efficiency in fans, blowers, and pumps for air and fluid handling.
• Material Handling Equipment: Optimizes conveyors, sorters, and automated guided vehicles (AGVs).
• Food and Beverage Processing: Provides precise speed control for mixers, blenders, and packaging machinery.
• Textile Machinery: Ensures smooth operation of weaving, spinning, and finishing equipment.
• Pumping Applications: Suitable for variable torque pump control in water and wastewater treatment.

Why Choose This Model?

• Exceptional Value: Offers a cost-effective solution without compromising on quality or performance.
• Proven Reliability: Allen-Bradley's reputation for durable industrial components ensures long-term operational stability.
• Enhanced Efficiency: V/Hz control and precise motor management reduce energy consumption and operational costs.
• Simplified Integration: RS485 communication allows for straightforward connection to existing control systems.
• Ease of Operation: The intuitive LED display and keypad make setup and daily use remarkably simple.
• Versatile Application: Suitable for a broad range of industrial uses, providing flexibility for various projects.

Order Now

Experience the superior control and reliability of the Allen-Bradley 22B-D6P0N104 PowerFlex 40 AC Drive. This high-performance, cost-effective solution is ready to optimize your industrial motor applications. Benefit from its compact design, easy-to-use interface, and robust technical specifications designed for demanding environments. Don't miss out on enhancing your system's efficiency and longevity. Fast shipping and worldwide delivery options are available for your convenience. Explore our extensive selection of Allen-Bradley PowerFlex 40 Variable Frequency Drives to find the perfect fit for your industrial needs.
