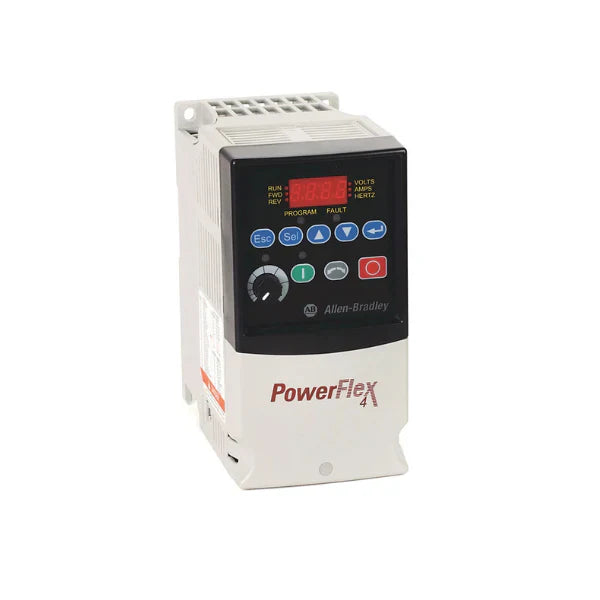

Allen-Bradley 22A-B1P5N104

Overview

The Allen-Bradley 22A-B1P5N104 PowerFlex 4 AC Drive is a robust and highly efficient variable frequency drive (VFD) engineered for precision motor control in diverse industrial environments. As part of the globally recognized PowerFlex 4 series, this model stands out for its compact footprint and exceptional cost-effectiveness, making it an ideal solution for small to medium-scale applications. Operating flawlessly on a 208-240V AC, 3-phase power supply, it delivers a consistent 1.5A output current, enabling fine-tuned control of motors up to 0.2 kW (0.25 HP). This drive is expertly designed to manage common industrial loads such as fans, pumps, and conveyors, guaranteeing smooth operation and significant energy savings. Its IP20 open enclosure allows for flexible panel-mounted installations, while the integrated RS485 communication port facilitates seamless integration into existing automation networks for enhanced remote monitoring and control capabilities. The 22A-B1P5N104 is a testament to Allen-Bradley's commitment to delivering high-performance, user-friendly, and reliable motor control solutions.

Key Features

• Optimal Voltage & Power Output: Provides 208-240V AC, 3-Phase power with 1.5A output for 0.2 kW (0.25 HP) motors.
• Compact Frame Size A: Designed for space-saving installations, fitting into tight control panels.
• Built-in RS485 Communication: Ensures easy network integration for advanced control and monitoring.
• IP20 Open-Type Enclosure: Offers protection while allowing for efficient panel mounting.
• Fixed Digital Keypad with LED Display: Guarantees straightforward setup and real-time operational feedback.
• Volts per Hertz (V/Hz) Control: Delivers precise and efficient motor speed regulation.
• Cost-Effective Solution: Excellent performance and reliability at a competitive price point.

Technical Specifications

• Model: 22A-B1P5N104
• Series: PowerFlex 4 AC Drive
• Voltage Input: 208-240V AC, 3-Phase
• Output Current: 1.5A
• Motor Power Rating: 0.2 kW (0.25 HP)
• Enclosure Rating: IP20 (Open Type)
• Control Type: Volts per Hertz (V/Hz)
• Communication Protocol: RS485
• Filter: No CE-Compliant Filter
• Keypad Type: Fixed Digital Keypad with LED Display
• Mounting: Panel Mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Frame Size: A

Applications

• Small Industrial Motor Control: Ideal for low-power motors in manufacturing and assembly lines.
• HVAC Systems: Precisely controls fans and pumps for ventilation and air conditioning.
• Material Handling Equipment: Optimizes small conveyor belts and transport systems.
• Food and Beverage Processing: Provides reliable speed control for mixers and pumps in hygienic environments.
• General-Purpose Machine Automation: Versatile for various low-power applications requiring adjustable speed.
• Water Treatment Facilities: Manages small pumps for flow regulation and chemical dosing.

Why Choose This Model?

• Unmatched Reliability: Built with Allen-Bradley's renowned industrial-grade quality for continuous operation.
• Energy Efficiency: Optimized V/Hz control significantly reduces energy consumption and operational costs.
• Ease of Integration: RS485 communication simplifies connectivity with existing and new control systems.
• User-Friendly Interface: The fixed digital keypad and LED display ensure quick setup and easy monitoring, even for novice users.
• Space-Saving Design: Its compact Frame Size A is perfect for installations where panel space is at a premium.
• Versatility: Suitable for a wide array of applications, offering flexible motor control solutions.

Order Now

Elevate your motor control capabilities with the Allen-Bradley 22A-B1P5N104 PowerFlex 4 AC Drive. Experience superior performance, reliability, and precision for your industrial applications. Take advantage of our fast shipping and worldwide delivery options to get this essential component to your facility without delay. Don't compromise on quality or efficiency – invest in the proven technology of Allen-Bradley today!
