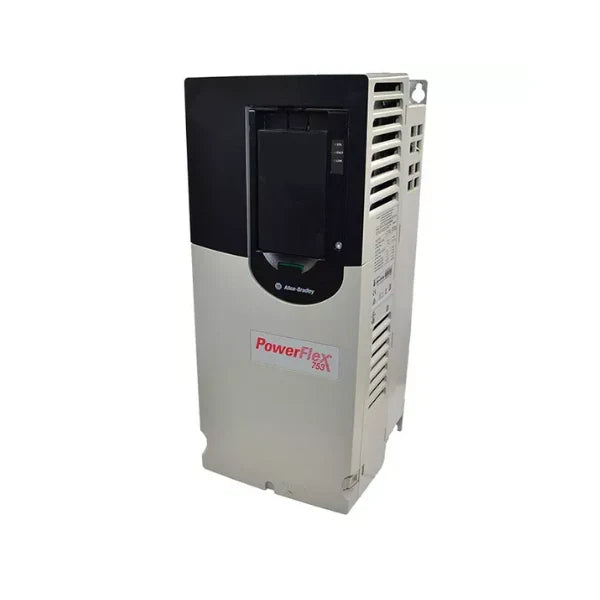

Allen-Bradley 20F11NC043JA0NNNNN

Overview

The Allen-Bradley 20F11NC043JA0NNNNN is a high-performance PowerFlex 753 AC drive, meticulously engineered for demanding industrial automation and advanced motor control applications. This versatile 400V AC, 3-phase drive delivers an impressive 43A output, making it suitable for a wide range of machinery and processes. With a robust normal duty power rating of 22kW (30 HP) and a heavy-duty rating of 18.5kW (25 HP), it ensures reliable and efficient operation even under strenuous conditions. Designed for optimal performance, this Frame 3 drive integrates air cooling, a built-in DB transistor for dynamic braking, and a filtered design to minimize electrical interference. Its precharge AC input further guarantees smooth power management and optimized motor performance, providing an intelligent solution for modern industrial environments. This model is a testament to Allen-Bradley's commitment to delivering cutting-edge technology that enhances productivity and operational efficiency in various professional settings.

This drive is part of the esteemed PowerFlex 753 series, known for its modular design, extensive features, and ease of integration. Whether you are managing complex manufacturing lines, intricate material handling systems, or critical pump and fan operations, the 20F11NC043JA0NNNNN offers the precision, control, and durability required for sustained, high-level performance. Its open-type enclosure and panel-mount design allow for flexible installation within existing control systems, making it a preferred choice for engineers and system integrators seeking reliable and adaptable motor control solutions. The absence of an integrated Human Interface Module (HIM) facilitates external control options, allowing for customized operational setups that cater to specific application requirements.

Key Features

• Optimized Power Output: Delivers 22kW for Normal Duty (ND) and 18.5kW for Heavy Duty (HD), catering to diverse motor control demands.
• Industrial Voltage & Phase: Operates efficiently at 400V AC across 3-phases, ideal for demanding industrial power infrastructures.
• Robust Output Current: Provides a stable 43A output, ensuring consistent and powerful motor performance.
• Integrated Braking: Features a built-in Dynamic Braking (DB) Transistor for rapid and controlled motor deceleration.
• Advanced Filtration: Incorporates a filtered design to significantly reduce electrical noise and ensure clean power delivery.
• Efficient Cooling System: Air-cooled design prevents overheating, extending the lifespan and reliability of the unit.
• Precharge AC Input: Enhances power stability and protects components during startup, ensuring smooth operation.

Technical Specifications

• Model: 20F11NC043JA0NNNNN
• Series: PowerFlex 753
• Input Voltage: 400V AC, 3-Phase
• Output Current: 43A
• Power Rating (Normal Duty): 22kW (30 HP)
• Power Rating (Heavy Duty): 18.5kW (25 HP)
• Cooling Method: Air-Cooled
• Enclosure Type: Open Type
• Dynamic Braking (DB) Transistor: Yes (Included)
• CM Jumper: Installed
• Filter: Yes
• Mounting: Panel Mount
• Human Interface Module (HIM): Not Included (Requires External)
• Frame Size: 3
• Certifications: UL, CE, RoHS Compliant
• Motor Control Type: AC Drive

Applications

• Industrial Motor Control: Ideal for precision speed and torque control in various industrial machinery.
• Pumps & Fans: Optimizes energy efficiency and performance in HVAC systems, water treatment, and ventilation.
• Material Handling Systems: Ensures smooth and reliable operation of conveyors, hoists, and automated guided vehicles.
• Manufacturing & Process Control: Enhances system reliability and precision in intricate production lines and automated processes.
• Packaging Machinery: Provides accurate control for all types of packaging equipment, from filling to sealing.
• Mixing and Agitation: Offers stable and consistent speed control for industrial mixers and agitators.

Why Choose This Model?

• Exceptional Performance: Engineered for both normal and heavy-duty applications, ensuring versatility and reliability.
• Enhanced Efficiency: Advanced power management features and robust design contribute to energy savings and reduced operational costs.
• Seamless Integration: Designed for easy integration into existing control systems, supported by precharge AC input and versatile mounting options.
• Superior Motor Protection: Built-in safeguards and comprehensive filtering protect connected motors from electrical disturbances.
• Robust & Durable Construction: Allen-Bradley’s renowned build quality guarantees long-term reliability in harsh industrial environments.
• Flexible Control Options: The absence of an integrated HIM allows for customized external control solutions, adapting to specific user requirements.

Order Now

Elevate your industrial operations with the Allen-Bradley 20F11NC043JA0NNNNN PowerFlex 753 AC Drive. Experience unparalleled performance, precision, and reliability for your critical motor control applications. Benefit from fast shipping and worldwide delivery options. Invest in cutting-edge automation technology today to optimize your system's efficiency and productivity!
