Allen-Bradley 20AC3P5A0AYNANC0

Overview

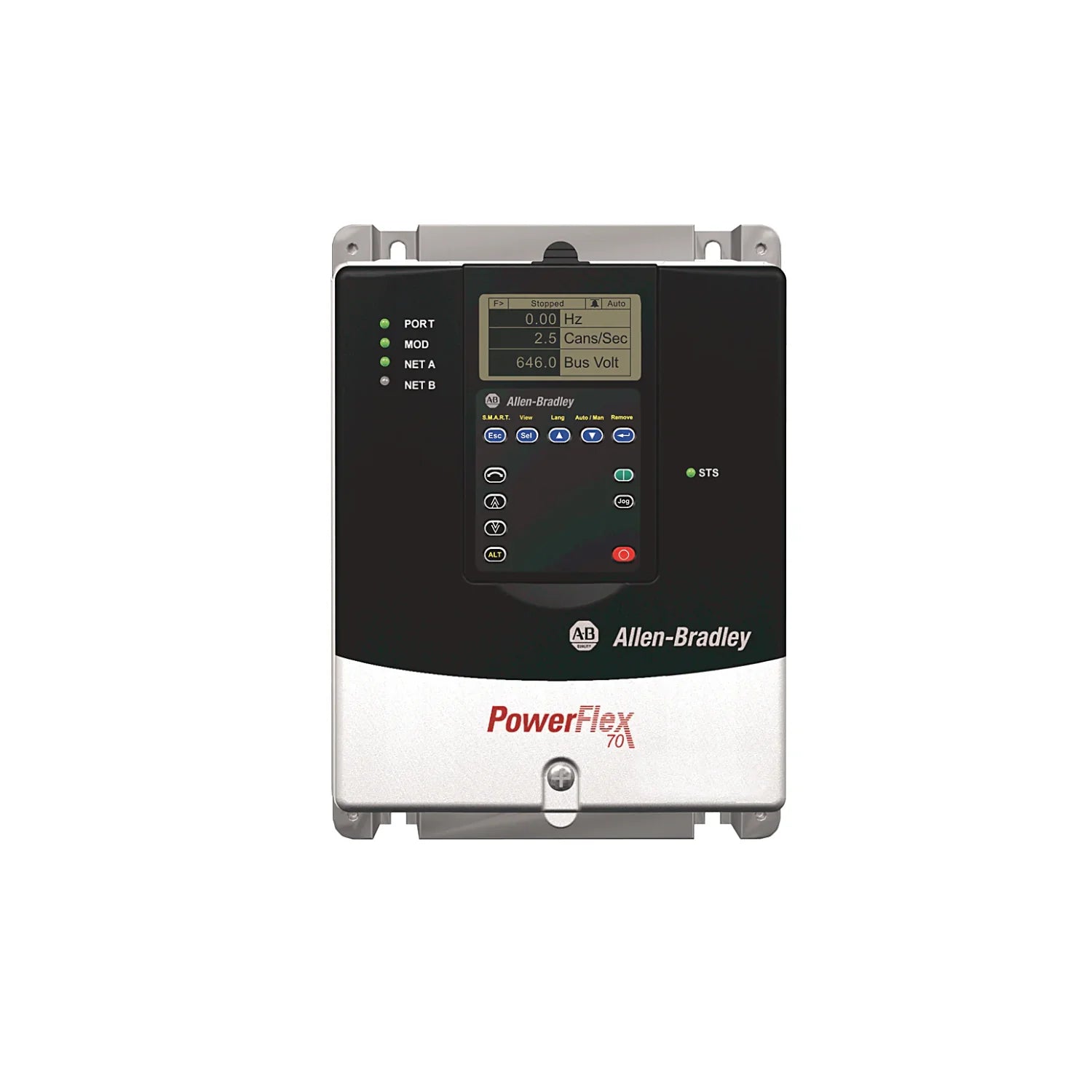

The Allen-Bradley 20AC3P5A0AYNANC0 is a robust PowerFlex 70 AC Drive, meticulously engineered for precision motor control across a wide spectrum of industrial applications. Part of the highly regarded PowerFlex 70 series, this drive stands out for its exceptional reliability and performance in demanding environments. Operating seamlessly at 400V AC, it delivers a consistent 3.5A output current, making it an ideal choice for 1.5 kW (2 HP) Normal Duty and 1.1 kW (1.5 HP) Heavy Duty operations. Its intelligent design, encapsulated within an IP20/NEMA Type 1 panel-mount enclosure, ensures optimal protection and seamless integration into standard industrial setups. This drive is a cornerstone for operations demanding dependable and efficient motor management, contributing to enhanced productivity and reduced downtime.

Key Features

• Optimized Motor Control: Provides precise and reliable control for 1.5 kW (Normal Duty) and 1.1 kW (Heavy Duty) motors.
• Efficient Power Output: Delivers a consistent 3.5A continuous output current at 400V AC, 3-phase.
• Integrated Braking: Features an installed Brake IGBT for dynamic braking capabilities without external components.
• Industrial-Grade Enclosure: Housed in an IP20 / NEMA Type 1 panel-mount enclosure for robust protection.
• CE Compliance: Equipped with a second environment filter to meet CE EMC directive (89/336/EEC) standards.
• Compact Design: Frame Size B offers a space-saving solution for control panels with limited real estate.
• Enhanced Control: Boasts an Enhanced Control type for superior operational flexibility and performance.

Technical Specifications

• Catalog Number: 20AC3P5A0AYNANC0
• Series: PowerFlex 70 AC Drive
• Input Voltage: 400VAC, 3-Phase
• Output Current: 3.5 Amps Continuous
• Power Rating (Normal Duty): 1.5 kW (2 HP)
• Power Rating (Heavy Duty): 1.1 kW (1.5 HP)
• Enclosure Type: IP20 / NEMA Type 1, Panel Mount
• Brake IGBT: Installed
• Human Interface Module (HIM): Not included (Blank Plate)
• Filter: Second Environment Filter per CE EMC directive
• Communication Module: None
• Control Type: Enhanced Control
• Feedback: None
• Frame Size: B
• Mounting: Panel Mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing
• Certifications: CE, UL, cUL

Applications

• Conveyor Systems
• Industrial Fan and Pump Control
• Material Handling Equipment
• Packaging and Processing Machinery
• General Factory Automation
• HVAC Systems

Why Choose This Model?

• Unmatched Reliability: Built by Allen-Bradley, a leader in industrial automation, ensuring long-term, dependable performance.
• Space-Saving Design: Its compact Frame Size B allows for easy integration into control panels even with limited space.
• Cost-Effective Braking: The integrated Brake IGBT eliminates the need for additional external components, simplifying installation and reducing costs.
• Global Compliance: CE certification and the included second environment filter ensure adherence to international electromagnetic compatibility standards.
• Versatile Performance: Suitable for a broad array of industrial tasks, offering both Normal Duty and Heavy Duty capabilities for varied motor requirements.
• Simplified Integration: Designed for straightforward panel mounting, making installation and maintenance efficient.

Order Now

Elevate your industrial processes with the superior control and reliability of the Allen-Bradley 20AC3P5A0AYNANC0 PowerFlex 70 AC Drive. This high-performance drive is readily available for immediate shipment worldwide, ensuring your operations remain uninterrupted. Invest in a solution that combines cutting-edge technology with Allen-Bradley's renowned quality. For further exploration of our comprehensive range, discover our full selection of Allen-Bradley PowerFlex 70 Variable Frequency Drives. Optimize your automation – order today!
