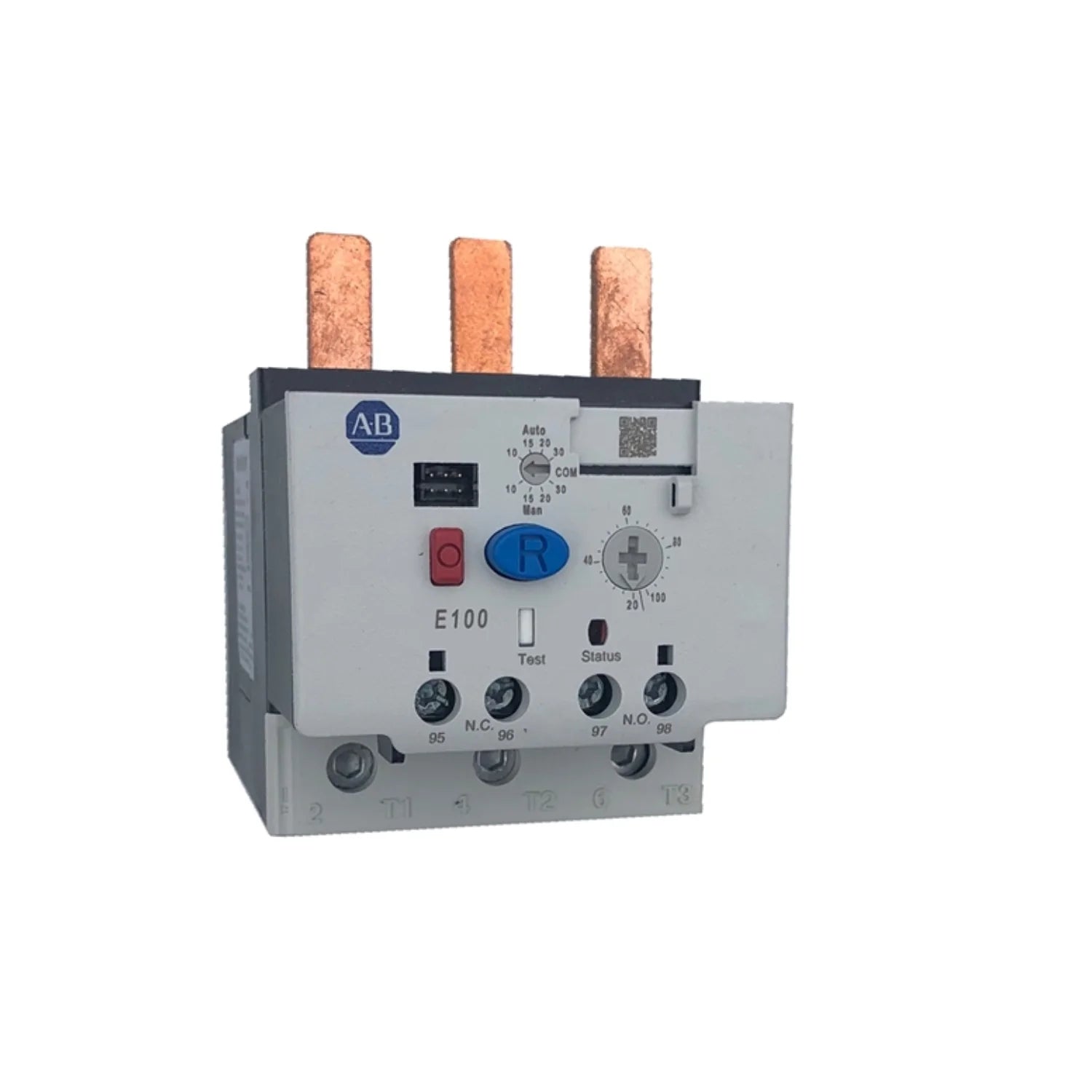

Allen-Bradley 193-1EFGE

Overview

The Allen-Bradley 193-1EFGE E100 Advanced Overload Relay is meticulously engineered to deliver superior motor protection for a diverse range of industrial applications. As a cornerstone of the E100 Advanced Overload Relay series, this robust device is specifically designed to safeguard motors and electrical systems from damaging overload conditions. Its seamless compatibility with IEC 100-C contactors (C60-C97) ensures straightforward integration into existing setups, making it an ideal choice for new installations or system upgrades. With an impressive 20-100A current range and user-selectable trip classes of 10, 15, 20, or 30, the 193-1EFGE offers unparalleled flexibility and precision in motor protection, adapting to the specific demands of various operating environments. This reliable solution helps minimize downtime, extend motor lifespan, and enhance overall operational efficiency.

Key Features

• Wide Current Range (20-100A): Accommodates a broad spectrum of motor sizes, offering versatile application.
• Adjustable Trip Classes (10, 15, 20, 30): Provides customized, precise overload protection tailored to motor characteristics and application demands.
• Seamless IEC Contactor Compatibility: Designed for effortless integration with IEC 100-C C60-C97 contactors, simplifying installation.
• Reliable Overload Protection: Effectively prevents motor damage by accurately detecting and responding to current overloads.
• Durable Industrial Construction: Built with high-quality materials to withstand harsh industrial environments, ensuring longevity and consistent performance.
• Flexible Mounting Options: Supports both DIN rail and direct mount installations for adaptable system integration.
• Enhanced System Uptime: Safeguards critical motor components, reducing unexpected failures and improving operational continuity.

Technical Specifications

• Part Number: 193-1EFGE
• Series: E100 Advanced Overload Relay
• Current Range: 20-100A
• Trip Class: Adjustable (10, 15, 20, or 30)
• Supported Contactors: IEC 100-C (C60-C97)
• Construction: High-durability materials for demanding industrial use
• Mounting Style: DIN rail or direct mount
• Protection Type: Thermal Overload

Applications

• Motor Control Centers (MCCs): Essential for comprehensive motor protection within centralized control systems.
• Industrial Automation: Ensures the reliable operation of motors in assembly lines, conveyor systems, and robotic cells.
• HVAC Systems: Protects motors utilized in heating, ventilation, and air conditioning equipment for commercial and industrial buildings.
• Pumping and Fluid Handling: Provides critical overload protection for motors driving pumps in water treatment, chemical processing, and other fluid handling applications.
• Material Handling Equipment: Ideal for protecting motors in cranes, hoists, and other material conveying machinery.
• Machine Tools: Safeguards motors in various machine tool applications, preventing costly downtime and repairs.

Why Choose This Model?

• Precise and Adaptable Motor Protection: With adjustable trip classes, you can fine-tune the protection to perfectly match your motor's specific thermal characteristics, preventing both under-protection and nuisance tripping.
• Seamless Integration with Allen-Bradley Ecosystem: Designed for optimal compatibility with Allen-Bradley's widely used IEC 100-C contactors, ensuring hassle-free installation and reliable performance within existing Allen-Bradley control systems.
• Engineered for Durability: Constructed from high-quality, robust materials, this overload relay is built to endure the rigors of harsh industrial environments, offering long-term reliability and reducing the need for frequent replacements.
• Trusted Industry Leader: Allen-Bradley is a globally recognized leader in industrial automation and motor control solutions, guaranteeing a product backed by extensive expertise and a reputation for excellence.
• Enhanced Operational Efficiency: By providing dependable overload protection, the 193-1EFGE minimizes the risk of motor damage and unexpected shutdowns, contributing directly to increased uptime and improved productivity for your operations.
• Versatile Application Scope: Its broad current range and flexible trip settings make it suitable for a wide array of motor sizes and industrial applications, providing a single, adaptable solution for diverse needs.

Order Now

Elevate your motor protection strategy with the Allen-Bradley 193-1EFGE E100 Advanced Overload Relay. Experience the peace of mind that comes with superior performance, durable construction, and the trusted reliability of Allen-Bradley. Order yours today to ensure the longevity and efficiency of your critical motor-driven systems. Explore our comprehensive range of 193 Series Relays and Allen-Bradley Industrial Automation Products for all your control and automation needs.
