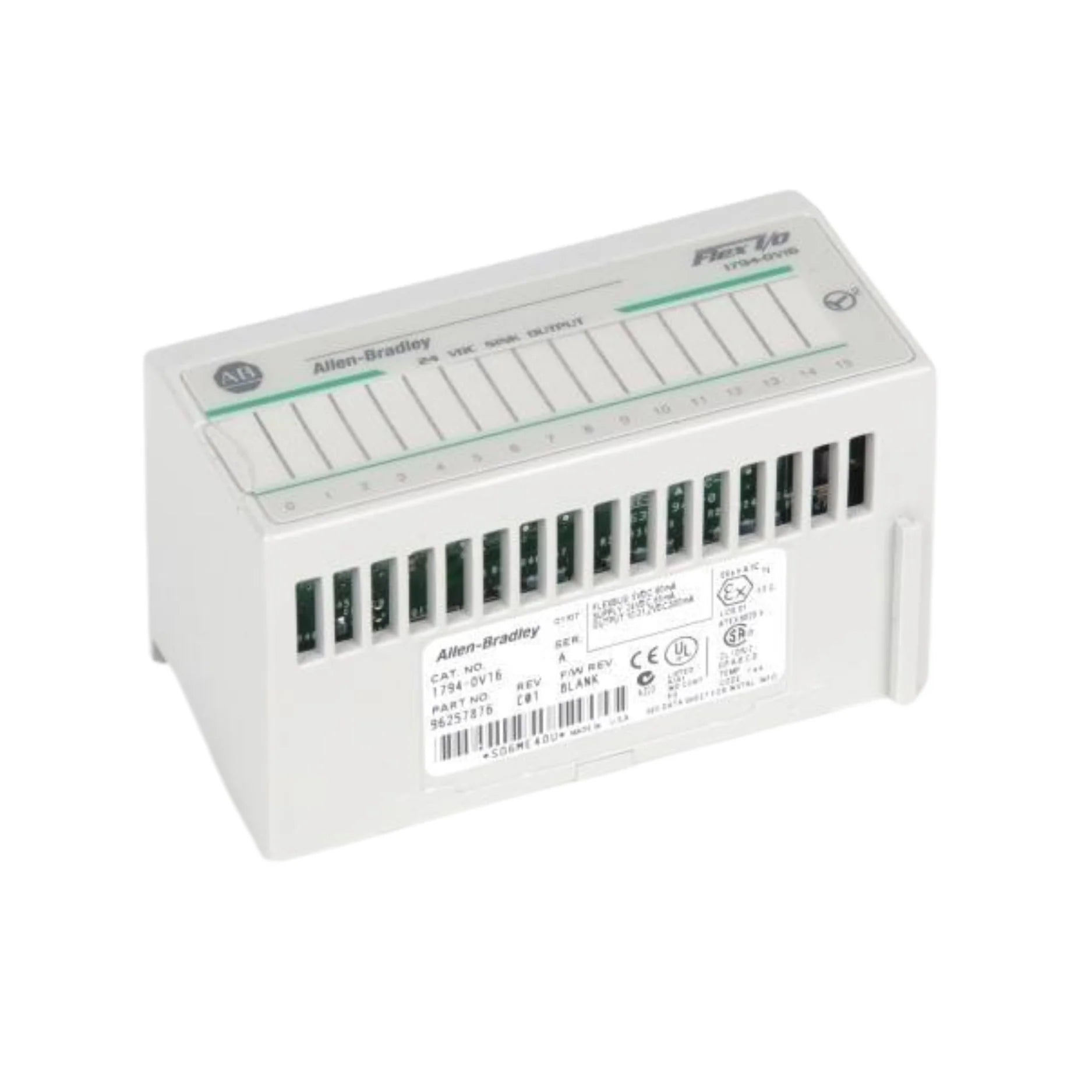

Allen-Bradley 1794-OV16

Overview

The Allen-Bradley 1794-OV16 is a high-performance 16-point, 24V DC digital sink output module meticulously engineered for seamless integration into the renowned FLEX I/O distributed control system. This sophisticated module delivers exceptional output density within a remarkably compact form factor, making it an indispensable component for modern industrial automation environments. Designed for efficiency and precision, the 1794-OV16 is ideally suited for applications requiring robust and reliable digital output capabilities, particularly in scenarios demanding distributed control intelligence. Its architecture empowers system designers to implement highly granular control over various industrial processes, contributing to enhanced operational agility and system responsiveness. The non-isolated outputs provide flexibility for external circuit protection, allowing users to tailor safeguarding mechanisms to their specific application requirements, ensuring optimal system safety and longevity.

Key Features

• 16 high-density sink-type digital outputs for versatile control
• Optimized for 24V DC output voltage, compatible with standard industrial systems
• Impressive total output current capacity of 8.0A (0.5A per channel)
• Non-isolated outputs for flexible external circuit protection strategies
• Equipped with 16 yellow LED status indicators for swift diagnostic feedback
• Compact FLEX I/O design, perfect for space-constrained distributed control panels
• Seamless integration with the Allen-Bradley FLEX I/O platform for system scalability

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Part Number: 1794-OV16
• Module Type: Digital Sink Output Module
• Output Voltage: 24V DC nominal
• Channels: 16 individual sink outputs
• Isolation: Non-isolated between channels and backplane
• Protection: No internal fusing (external fusing is strongly recommended)
• Output Current Rating: 0.5 A per point, 8.0 A total module current
• Indicators: 16 yellow LED status indicators (one per channel)
• Mounting: Requires a compatible FLEX I/O terminal base unit (e.g., 1794-TB3, 1794-TB3S)
• System Compatibility: Allen-Bradley FLEX I/O distributed control system
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Applications

• Precision distributed I/O implementation in advanced factory automation systems
• Space-efficient control solutions for material handling and logistics applications
• Integrated output control in packaging and assembly line machinery
• Critical digital output requirements within ControlLogix and CompactLogix PLC ecosystems
• Systems demanding high-channel-count DC output capabilities with robust control
• Automation of conveyor belts, robotic cells, and sorting mechanisms

Why Choose This Model?

• Enhanced Troubleshooting: Integrated LED indicators provide immediate visual diagnostics, significantly reducing downtime and simplifying maintenance procedures.
• Space-Saving Design: Its compact FLEX I/O footprint allows for high-density output within minimal panel space, optimizing cabinet design and reducing installation costs.
• Seamless Integration: As part of the Allen-Bradley FLEX I/O family, the 1794-OV16 offers guaranteed compatibility and smooth integration with existing Rockwell Automation infrastructure.
• Flexible Protection: The non-isolated outputs enable custom external fusing solutions, empowering engineers to tailor circuit protection specifically to their application's unique safety and operational requirements.
• Proven Reliability: Manufactured by Allen-Bradley, a leader in industrial automation, this module embodies robust construction and dependable performance crucial for demanding industrial environments.
• Global Availability & Support: Benefit from worldwide shipping and access to comprehensive technical support from Allen-Bradley's extensive network.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 1794-OV16 FLEX I/O Digital Sink Output Module. This powerful and compact solution is engineered to optimize your control systems, providing reliable performance and diagnostic clarity. Don't compromise on precision and efficiency – secure your module today for fast global shipping and streamline your operations with leading-edge technology. Explore our full range of 1794 FLEX I/O Modules and the comprehensive Allen-Bradley Industrial Automation Products category to discover more solutions tailored to your needs.
