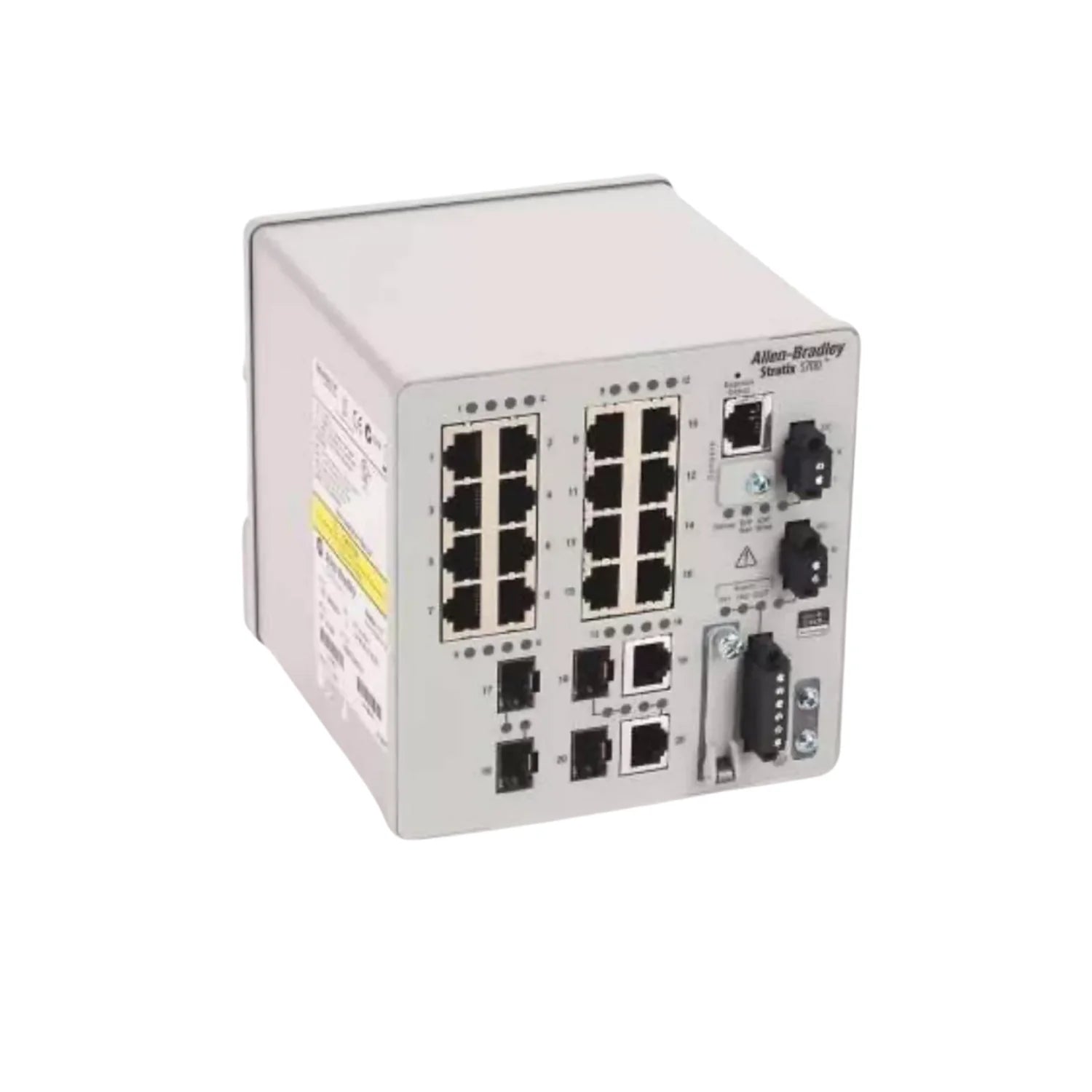

Allen-Bradley 1783-BMS20CGPK

Overview

The Allen-Bradley 1783-BMS20CGPK is a robust and high-performance managed Ethernet switch from the acclaimed Stratix 5700 series, meticulously engineered to meet the rigorous demands of modern industrial automation networks. This state-of-the-art device is designed to provide seamless, reliable, and secure communication within complex industrial infrastructures. Boasting 16 x 10/100 Mbps copper ports for standard connectivity and 2 x 10/100/1000 Mbps combo ports with versatile SFP slots for fiber or copper uplinks, this switch offers exceptional flexibility. Crucial for advanced industrial applications, it fully supports CIP Sync for precise time synchronization and Device Level Ring (DLR) for enhanced network redundancy, ensuring uninterrupted operation. With its full software capabilities, the 1783-BMS20CGPK enables comprehensive network configuration, monitoring, and diagnostic tools, empowering administrators with unparalleled control. Furthermore, its conformally coated design provides superior protection against environmental aggressors like moisture, dust, and corrosive elements, making it an ideal solution for deployment in harsh industrial settings. The broad 24/48V DC power input range (12-60V DC) offers significant operational flexibility, simplifying integration into diverse power schemes. This switch is not just a connectivity device; it is a fundamental component for building resilient, high-performing, and intelligent industrial Ethernet networks.

Key Features

• High-Density Port Configuration: Equipped with 16 x 10/100 Mbps copper ports for extensive device connectivity.
• Versatile Combo Ports: Includes 2 x 10/100/1000 Mbps combo ports with SFP slots, supporting both fiber and copper connections for flexible uplink options.
• Advanced Software Suite: Features full software capabilities for comprehensive network management, configuration, and diagnostics.
• Industrial Protocol Support: Integrates CIP Sync and Device Level Ring (DLR) for precise time synchronization and robust network redundancy.
• Rugged Environmental Protection: Conformally coated to resist moisture, dust, and corrosive elements, ensuring reliable operation in harsh industrial environments.
• Flexible Power Input: Supports a wide 24/48V DC power input range (12-60V DC) with dual power source connectors for enhanced installation flexibility and reliability.
• Optimized for Industrial Automation: Specifically designed to meet the performance and reliability requirements of industrial automation and control systems.

Technical Specifications

• Model: 1783-BMS20CGPK
• Series: Stratix 5700
• Port Configuration: 16 x 10/100 Mbps copper ports, 2 x 10/100/1000 Mbps combo ports (with SFP slots)
• Software Features: Full Software Version
• Industrial Protocols: CIP Sync, Device Level Ring (DLR)
• Power Input: 24/48V DC (12-60V DC range)
• Conformal Coating: Yes
• Mounting: DIN Rail Mountable
• Operating Temperature: Designed for industrial temperature ranges
• Certifications: Industrial safety and compliance standards (specific certifications may vary, refer to datasheet)

Applications

• Industrial Automation Networks: Ideal for managing and segmenting Ethernet traffic in manufacturing and processing plants.
• Real-Time Control Systems: Ensures low-latency and synchronized communication for critical control applications using CIP Sync.
• High-Availability Systems: Utilized in applications requiring redundant networking for continuous operation through DLR technology.
• Harsh Environment Deployments: Suitable for deployments in environments exposed to dust, moisture, and chemical agents due to conformal coating.
• Machine Control and Robotics: Provides reliable connectivity for control systems in advanced machinery and robotic cells.
• Building Automation and Infrastructure: Can be integrated into large-scale building automation and smart infrastructure projects.

Why Choose This Model?

• Unmatched Industrial Reliability: Engineered by Allen-Bradley for continuous operation in the most demanding industrial environments.
• Advanced Network Management: Full software capabilities empower administrators with precise control and monitoring over their network infrastructure.
• Seamless Integration: Designed for effortless integration into existing Logix-based control systems, simplifying network architecture.
• Future-Proof Connectivity: Offers a versatile mix of copper and fiber-ready combo ports, supporting current and future network expansion needs.
• Enhanced Redundancy and Synchronization: Built-in CIP Sync and DLR support ensure maximum uptime and precise data exchange for critical applications.
• Robust Environmental Protection: The conformally coated design significantly extends the lifespan of the device in challenging operational conditions.

Order Now

Elevate your industrial network performance and reliability with the Allen-Bradley 1783-BMS20CGPK Stratix 5700 Managed Ethernet Switch. This feature-rich device offers the perfect combination of speed, resilience, and advanced management capabilities to optimize your operations. Invest in the cornerstone of a robust and intelligent industrial Ethernet infrastructure today to ensure seamless communication and unparalleled control. Order now to experience the difference Allen-Bradley quality makes.
