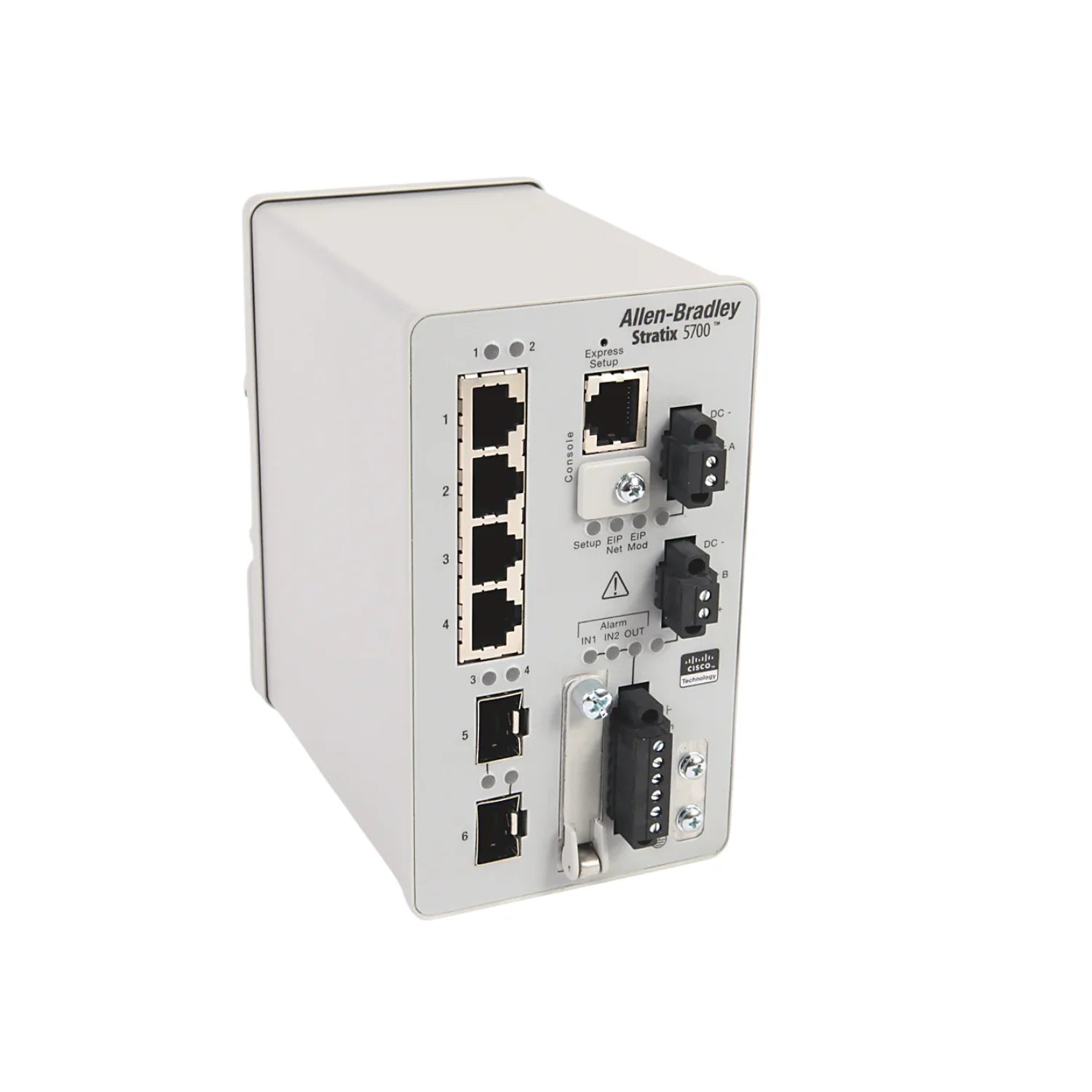

Allen-Bradley 1783-BMS06SL

Overview

The Allen-Bradley 1783-BMS06SL Stratix 5700 is a robust and compact managed Ethernet switch engineered specifically for demanding industrial automation environments. As part of the renowned Stratix 5700 series, this switch provides essential network management capabilities, making it an ideal choice for machine-level applications and small industrial networks. It features a versatile port configuration including 4 x 10/100 Mbps copper RJ45 ports and 2 x 10/100 Mbps combo ports, which can accommodate either copper or fiber SFP modules, offering exceptional flexibility for diverse connectivity needs. Designed for resilience, the 1783-BMS06SL includes dual power source connectors, supporting 24/48V DC within a wide 12-60V DC range, ensuring continuous operation even in critical scenarios. Its IP30-rated metal housing and DIN rail mounting capability further solidify its suitability for deployment in harsh industrial settings, where reliability and secure communication are paramount. This model, equipped with Lite software, focuses on delivering core management functions without unnecessary complexity, streamlining network operations for engineers and technicians.

Key Features

• Flexible Connectivity: Equipped with 4 x 10/100 Mbps Copper RJ45 Ports for standard Ethernet devices and 2 x 10/100 Mbps Combo Ports (Copper or SFP Slots) for versatile fiber or copper uplink options.
• Industrial-Grade Durability: Housed in an IP30-rated metal enclosure designed to withstand challenging industrial conditions, including dust and vibrations.
• Redundant Power Input: Features Dual Power Source Connectors (24/48V DC, with a 12-60V DC range) to ensure maximum uptime and reliability.
• Optimized for Manufacturing: Specifically designed for Machine-Level Networking, facilitating seamless integration with PLCs, HMIs, and other I/O devices.
• Simplified Management: Comes with Lite Software Version, offering essential network management functions for straightforward configuration and monitoring.
• Easy Installation: DIN Rail Mountable for quick, secure, and space-saving installation within industrial control panels.

Technical Specifications

• Model: 1783-BMS06SL
• Series: Stratix 5700
• Port Configuration: 4 x 10/100 Mbps RJ45, 2 x 10/100 Mbps combo ports (RJ45/SFP)
• Software Version: Lite (Basic Management Functions)
• Power Supply: 24/48V DC (12-60V DC range)
• Power Source Connectors: 2 (for redundancy)
• Mounting Type: DIN Rail
• Enclosure Rating: IP30 (Industrial-Grade Metal Housing)
• Application: Industrial Ethernet, machine control, automation networks
• Operating Temperature: Designed for wide industrial temperature ranges (specifics per datasheet)
• Dimensions: Compact form factor ideal for control cabinets (specifics per datasheet)

Applications

• Industrial Ethernet Networks: Connects critical components such as PLCs (Programmable Logic Controllers), HMIs (Human Machine Interfaces), and diverse I/O modules.
• Manufacturing & Automation: Enhances communication infrastructure in complex process control systems, contributing to higher efficiency and productivity.
• Smart Factory & IIoT Applications: Supports real-time data transfer and connectivity essential for Industrial Internet of Things (IIoT) initiatives and smart manufacturing environments.
• Machine-Level Networking: Provides reliable and secure Ethernet connectivity within automated machinery, ensuring continuous operation and data integrity.
• Building Automation: Can be deployed in certain building management systems requiring robust industrial-grade networking.
• Transportation Infrastructure: Suitable for intelligent transportation systems that demand hardened network components.

Why Choose This Model?

• Exceptional Value: The Allen-Bradley 1783-BMS06SL offers a cost-effective solution for managed switching without compromising on essential industrial features.
• Reliability in Harsh Environments: With its IP30-rated metal housing and robust design, this switch ensures consistent performance and longevity in challenging industrial conditions.
• Seamless Integration: Designed for easy integration into existing Allen-Bradley and Rockwell Automation ecosystems, simplifying network design and deployment.
• Flexible Connectivity Options: The inclusion of combo ports allows for adaptable network expansion using either copper or fiber, providing future-proofing for your network.
• Enhanced Network Uptime: Dual power inputs provide critical redundancy, significantly reducing the risk of network downtime due to power fluctuations or failures.
• Optimized for Specific Needs: The Lite software version provides focused management capabilities, ideal for users who need core functionality without the complexity of advanced enterprise features.

Order Now

Elevate your industrial network's performance and reliability. The Allen-Bradley 1783-BMS06SL Stratix 5700 Managed Ethernet Switch is in stock and ready to enhance your automation infrastructure. Benefit from its robust design, flexible connectivity, and dependable operation. Experience fast shipping and worldwide delivery when you place your order today. For a comprehensive overview of all available models in this series, please return to our Stratix Switches main category. Additionally, explore our extensive Allen-Bradley Industrial Automation Products master category for a complete range of controllers, drives, motors, HMIs, and accessories to complement your system.
