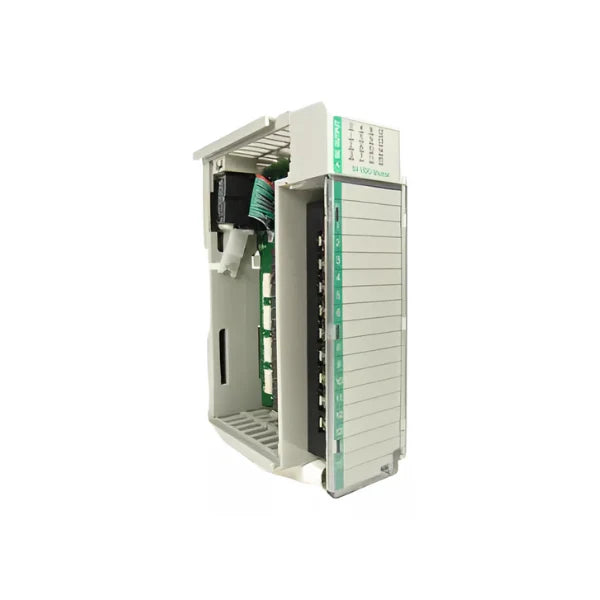

Allen-Bradley 1769-OB16P

Overview

The Allen-Bradley 1769-OB16P is a high-performance digital DC output module meticulously engineered for seamless integration with CompactLogix controllers. As part of the versatile 1769 Compact I/O series, this module delivers robust and reliable control over your industrial automation processes. Its primary purpose is to provide precise 24V DC sourcing output capabilities, making it an indispensable component for a wide array of applications requiring dependable digital control. The inclusion of advanced electronic fusing for each of its 16 outputs sets it apart, ensuring superior protection and enhanced system uptime compared to traditional fuse designs. This module is ideal for systems demanding high output density in a compact form factor, ensuring efficient use of panel space while maintaining exceptional operational integrity.

Key Features

• 16 Sourcing (PNP) 24V DC Outputs: Controls up to sixteen separate DC-powered devices.
• Individual Electronic Fusing: Each output is individually protected against overcurrent conditions for enhanced reliability.
• Fast Response & Auto-Reset: Offers quicker fault detection and potential automatic recovery over standard fuses.
• High Output Density: Maximizes I/O capacity within a minimal physical footprint, optimizing panel space.
• Seamless CompactLogix Compatibility: Designed for straightforward integration with Allen-Bradley CompactLogix systems.
• Wide Operating Voltage Range: Supports 19.2-31.2V DC, ensuring flexibility across various industrial power supplies.
• Robust Industrial Design: Built to withstand demanding industrial environments for long-term performance.

Technical Specifications

• Catalog Number: 1769-OB16P
• Series: CompactLogix 1769 Compact I/O
• Number of Outputs: 16
• Output Type: DC Sourcing (PNP)
• Nominal Operating Voltage: 24V DC
• Operating Voltage Range: 19.2-31.2V DC
• Short Circuit Protection: Electronic Fusing
• Isolation Voltage: 250V (Continuous), Reinforced Insulation Type
• Module Current Draw @ 5.1V: 195 mA
• Module Current Draw @ 24V: 160 mA
• Current Per Point: 0.5 A max
• Total Current: 4.0 A max
• Wiring Type: Open Type
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Relative Humidity: 5-95% non-condensing

Applications

• Controlling solenoids, relays, and contactors in automated machinery.
• Actuating indicator lights and alarms in control panels.
• Driving DC motor starters and small DC loads.
• Integration into manufacturing lines for precision control.
• Process automation systems requiring reliable digital output.
• Material handling and packaging equipment.

Why Choose This Model?

• Superior Output Protection: Electronic fusing delivers faster and more reliable protection than traditional fuses, safeguarding your equipment.
• Reduced Downtime: The potential for automatic resetting of electronic fuses minimizes operational interruptions caused by overcurrent faults.
• Optimized Space Efficiency: Its high I/O density design allows for more control points in a compact form factor, saving valuable panel space.
• Effortless System Integration: Specifically engineered for easy installation and seamless integration with existing CompactLogix systems.
• Enhanced System Reliability: Robust construction and advanced protection features contribute to a more stable and dependable control system.
• Future-Proof Technology: Leverage modern electronic fusing for improved diagnostics and maintenance practices.

Order Now

Upgrade your industrial control system with the advanced protection and high-density capabilities of the Allen-Bradley 1769-OB16P digital DC output module. With its electronic fusing, seamless CompactLogix compatibility, and robust design, this module is an intelligent investment for optimizing your operations. Ensure your systems run efficiently and reliably by securing this essential component today!
