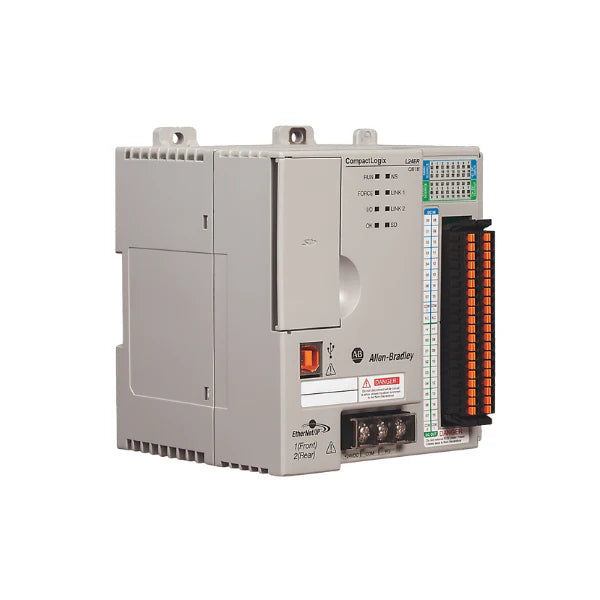

Allen-Bradley 1769-L24ER-QB1B

Overview

The Allen-Bradley 1769-L24ER-QB1B is a high-performance CompactLogix 5370 L2 programmable automation controller (PAC) meticulously engineered to address the demanding requirements of modern industrial automation. This versatile controller seamlessly integrates built-in digital I/O, advanced dual Ethernet/IP communication capabilities, and robust processing power within a surprisingly compact footprint. Designed as an all-in-one solution for mid-size machine control and distributed systems, the 1769-L24ER-QB1B significantly streamlines system integration, reduces wiring complexity, and optimizes panel space, making it an ideal choice for a wide array of industrial applications. Its capacity to handle intricate control tasks while maintaining ease of use truly sets it apart in its class.

Key Features

• Integrated I/O: Features 16 built-in digital inputs and 16 digital outputs (sourcing) for direct connection to sensors and actuators.
• Dual Ethernet/IP Ports: Supports Device-Level Ring (DLR) and linear network topologies, enhancing network flexibility and resilience.
• Axis Motion Control: Provides integrated motion control capabilities for up to 4 axes over EtherNet/IP, perfect for synchronized motion applications.
• Compact Design: Its optimized form factor is specifically tailored for small to mid-sized machinery and space-constrained enclosures.
• SD Card Support: Includes an SD card slot for nonvolatile memory backup, simplified program transfer, and fast recovery.
• Expandable Architecture: Supports up to four local 1769 I/O expansion modules, allowing for future scalability and customization.
• High-Speed Processing: Delivers rapid execution of control logic, ensuring real-time responsiveness for critical processes.

Technical Specifications

• Catalog Number: 1769-L24ER-QB1B
• Controller Series: CompactLogix 5370 L2
• Digital Inputs: 16 (24V DC sink/source)
• Digital Outputs: 16 (24V DC sourcing)
• Communication Ports: 2x EtherNet/IP (RJ45)
• Integrated Motion Axes: Up to 4 axes over EtherNet/IP
• Expansion Capability: Up to 4 local 1769 I/O modules
• User Memory: 1MB
• Mounting Type: DIN rail
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Weight: Approximately 900 grams
• Power Supply: 24V DC (via power supply module, not included)

Applications

• OEM Machine Control: Ideal for packaging machinery, assembly lines, and material handling systems requiring compact automation solutions.
• Industrial Automation: Provides robust real-time control for mid-range systems across various manufacturing sectors.
• Remote I/O & Motion Control: Facilitates distributed control architectures and synchronized motion applications using EtherNet/IP and Kinetix drives.
• Process Control: Suitable for batch processing, fluid control, and other process-oriented tasks demanding reliable automation.
• Building Automation: Can be leveraged in sophisticated building management systems for integrated control of HVAC, lighting, and security.

Why Choose This Model?

• All-in-One Solution: Combines controller, I/O, and networking into a single unit, simplifying system design and reducing hardware costs.
• Scalable and Flexible: Offers expandability for up to four additional 1769 I/O modules, allowing the system to grow with your needs.
• Enhanced Connectivity: Dual Ethernet ports provide superior network flexibility and fault tolerance for critical applications.
• Integrated Motion: Simplifies complex motion control tasks with built-in support for up to 4 axes over EtherNet/IP.
• Reliability & Support: Backed by Rockwell Automation's renowned global support network and reputation for industrial-grade quality.
• Optimized for Performance: Delivers robust performance with a compact footprint, making it perfect for space-constrained industrial environments.

Order Now

Elevate your automation capabilities with the Allen-Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 Controller. This powerful and versatile PAC is available and ready for global delivery to streamline your operations. Contact us today to inquire about available stock, compatible accessories, essential SD cards, and a comprehensive range of I/O expansion modules that can further enhance your system's functionality. Don't miss the opportunity to integrate a reliable and high-performance solution into your industrial automation infrastructure. Secure your 1769-L24ER-QB1B and experience the difference in efficiency and control.
