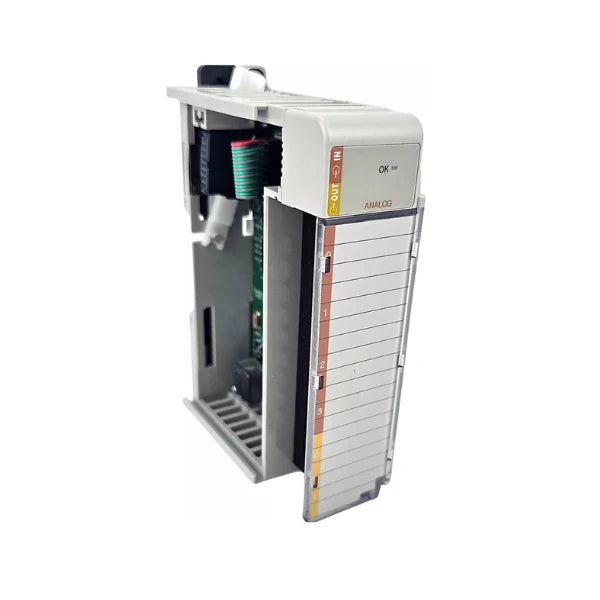

Allen-Bradley 1769-IF4XOF2

Overview

The Allen-Bradley 1769-IF4XOF2 is a high-performance Compact I/O analog combination module engineered to streamline your industrial automation processes. This versatile module seamlessly integrates both analog input and output capabilities into a single, compact unit, making it an indispensable component for efficient control systems. Designed specifically for robust compatibility with Allen-Bradley CompactLogix and MicroLogix 1500 programmable logic controllers, the 1769-IF4XOF2 provides unparalleled flexibility in handling a wide array of analog signals. Whether your application demands precise voltage measurements or accurate current control, this module offers comprehensive support for diverse signal ranges, ensuring seamless integration and optimal performance in demanding industrial environments. Its intelligent design consolidates functionality, reducing the need for multiple discrete modules and simplifying panel layouts, while also enhancing communication and data exchange within the control architecture. This leads to a more organized and efficient system overall, allowing for faster troubleshooting and easier maintenance.

Key Features

• Integrated 4 Analog Inputs & 2 Analog Outputs: Consolidates signal acquisition and control in one module, optimizing panel space and wiring.
• Flexible Signal Type Compatibility: Supports both voltage (±10V, 0–10V) and current (0–20 mA, 4–20 mA) signal ranges for versatile application.
• Exceptional Resolution & Accuracy: Offers 15-bit input resolution and 14-bit output resolution, along with a typical accuracy of ±0.5% full scale, crucial for precise control.
• Compact and Space-Saving Design: Engineered to minimize footprint within control panels, making it ideal for applications with limited space.
• Removable Terminal Block (RTB): Facilitates quick and easy wiring, maintenance, and module replacement, reducing downtime.
• Seamless Controller Compatibility: Fully compatible with Allen-Bradley CompactLogix and MicroLogix 1500 controllers, ensuring reliable integration.
• Durable DIN-Rail Mounting: Designed for standard industrial DIN-rail installation, providing secure and stable placement within enclosures.

Technical Specifications

• Catalog Number: 1769-IF4XOF2
• Product Type: Compact I/O Analog Combination Module
• Analog Inputs: 4 channels
• Analog Input Voltage Ranges: ±10V, 0–10V
• Analog Input Current Ranges: 0–20 mA, 4–20 mA
• Analog Outputs: 2 channels
• Analog Output Voltage Range: 0–10V
• Analog Output Current Range: 4–20 mA
• Input Resolution: 15 bits, providing fine-grained measurement capability.
• Output Resolution: 14 bits, ensuring precise analog control signals.
• Accuracy (Typical): ±0.5% of full scale, guaranteeing reliable and repeatable performance.
• Backplane Current Draw (5V DC): 120 mA
• Backplane Current Draw (24V DC): 50 mA
• Mounting Type: DIN Rail, for standardized and secure installation.
• Operating Temperature: 0°C to +60°C (32°F to 140°F), suitable for industrial environments.
• Terminal Block: Removable (RTB) included for simplified wiring.

Applications

• Industrial Process Control: Ideal for managing and optimizing various industrial processes through integrated sensor input and actuator output.
• OEM Machinery: Provides a cost-effective and space-efficient solution for signal integration in original equipment manufacturing.
• Temperature, Pressure, and Flow Monitoring: Enables accurate and real-time monitoring and control of critical environmental parameters.
• Automation Panels: Perfectly suited for compact and mid-sized automation systems, enhancing their operational efficiency.
• Building Management Systems: Facilitates precise control and monitoring within HVAC and other building automation applications.
• Test and Measurement Equipment: Offers high-resolution data acquisition and output for sophisticated testing setups.

Why Choose This Model?

• Consolidated Functionality: Combines both analog input and output capabilities into a single module, reducing hardware complexity and costs.
• Enhanced Versatility: Offers flexible signal range options (voltage and current) to meet diverse application requirements.
• Superior Precision: High resolution and accuracy ensure reliable and precise control over critical industrial processes.
• Optimized Space Utilization: Compact design significantly reduces the footprint within control panels, freeing up valuable space.
• Simplified Maintenance: Features like the Removable Terminal Block (RTB) make wiring, troubleshooting, and component replacement straightforward.
• Seamless Integration: Guaranteed compatibility with Allen-Bradley CompactLogix and MicroLogix 1500 controllers for effortless system setup.
• Robust Industrial Design: Built to withstand the rigors of industrial environments, ensuring long-term reliability and performance.

Order Now

Elevate your automation system with the Allen-Bradley 1769-IF4XOF2 Compact I/O Analog Combination Module. This essential component is in stock and ready to ship globally, ensuring you receive your order promptly. Enhance your control capabilities and optimize efficiency by adding this high-performance module to your system today. For a complete range of compatible controllers and related industrial automation products, explore our extensive inventory. Secure your operational advantage with reliable Allen-Bradley technology.
