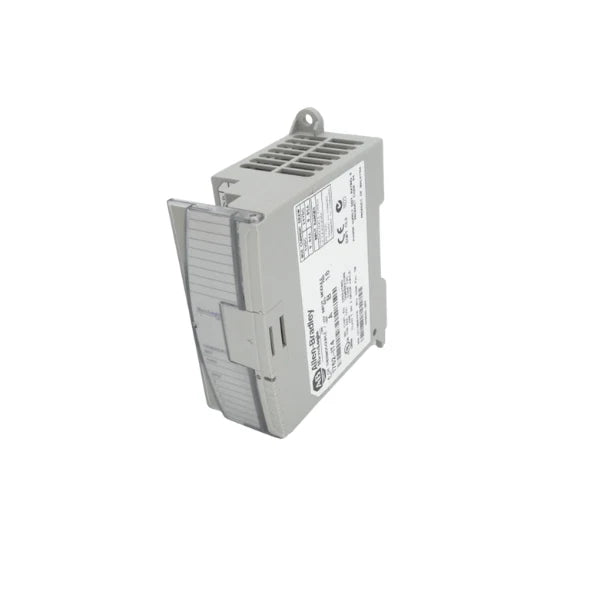

Allen-Bradley 1762-IT4

Overview

The Allen-Bradley 1762-IT4 is a high-performance 4-channel analog input module meticulously engineered for seamless integration with MicroLogix 1200 and MicroLogix 1400 programmable logic controllers (PLCs). This versatile module provides direct connectivity for a wide array of thermocouple types and millivolt signal sources, making it an indispensable component for accurate temperature and low-voltage signal monitoring in diverse industrial environments. Designed by Allen-Bradley, a leader in industrial automation, the 1762-IT4 ensures reliable data acquisition for critical processes, enhancing system stability and control precision. Its robust design and advanced features cater to demanding applications requiring precise and consistent measurement.

Key Features

• 4 Differential Input Channels: Provides flexible connectivity for multiple sensors.
• Wide Thermocouple Support: Compatible with J, K, T, E, R, S, B, N, C types for broad application versatility.
• Integrated Cold Junction Compensation (CJC): Ensures highly accurate temperature readings by automatically compensating for ambient temperature fluctuations.
• High 15-Bit Resolution: Delivers exceptional precision for critical temperature and millivolt measurements.
• Built-In Diagnostics: Features open-circuit detection and intuitive status LEDs for easy troubleshooting and maintenance.
• Compact Design: Space-saving expansion module ideal for optimizing control panel layouts.
• MicroLogix 1200/1400 Compatibility: Seamless integration with existing and new MicroLogix systems.

Technical Specifications

• Model: 1762-IT4
• Series: MicroLogix Expansion Module
• Channels: 4 differential inputs
• Input Range: ±50 mV
• Supported Thermocouple Types: J, K, T, E, R, S, B, N, C
• Resolution: 15 bits
• Update Rate: 400 ms (all channels)
• Cold Junction Compensation: Integrated
• Mounting: DIN rail or panel mountable
• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Isolation Voltage: 250V (continuous)
• Power Consumption: 35 mA @ 5V DC, 80 mA @ 24V DC
• Compatible With: MicroLogix 1200 and MicroLogix 1400 PLCs
• Certifications: UL, CE, c-UL, C-Tick
• Dimensions (HxWxD): 90 mm x 40 mm x 87 mm (3.54 in x 1.57 in x 3.43 in) approximately

Applications

• Industrial Process Control: Critical temperature monitoring in manufacturing, chemical, and pharmaceutical plants.
• HVAC Systems: Accurate temperature sensing for environmental control and building automation.
• Food & Beverage Processing: Maintaining precise temperature control for quality and safety standards.
• Ovens & Furnaces: Providing reliable thermocouple feedback for heat treatment and thermal processes.
• Test and Measurement: Versatile for laboratory and R&D applications requiring low-voltage signal acquisition.
• Environmental Monitoring: Logging and analyzing temperature data in remote or harsh environments.

Why Choose This Model?

• Unmatched Accuracy: Integrated CJC and high-resolution (15-bit) conversion ensure exceptionally precise temperature and millivolt measurements, critical for optimal process control.
• Exceptional Versatility: Supports a wide range of thermocouple types (J, K, T, E, R, S, B, N, C) and direct millivolt input, offering unparalleled flexibility for various sensor types and applications.
• Seamless MicroLogix Integration: Specifically designed for MicroLogix 1200 and 1400 systems, guaranteeing effortless setup, configuration, and reliable operation within your existing automation infrastructure.
• Enhanced Reliability: Built-in diagnostics with open-circuit detection and status LEDs provide immediate feedback, simplifying troubleshooting and minimizing downtime for increased operational efficiency.
• Space-Saving Design: Its compact form factor allows for efficient use of valuable control panel space, making it ideal for installations where footprint is a concern.
• Trusted Allen-Bradley Quality: Benefit from the renowned durability, performance, and support associated with Allen-Bradley industrial automation products.

Order Now

Elevate your industrial control systems with the Allen-Bradley 1762-IT4 analog input module. This essential component is in stock and ready to ship worldwide, ensuring your operations benefit from precise and reliable temperature and millivolt data acquisition without delay. Enhance the capabilities of your MicroLogix 1200 or 1400 system today. Contact us to inquire about compatible thermocouples, MicroLogix CPUs, or comprehensive temperature control kits tailored to your specific project needs. Don't compromise on accuracy and efficiency – invest in the proven performance of Allen-Bradley.
