Allen-Bradley 1762-IQ8OW6

Overview

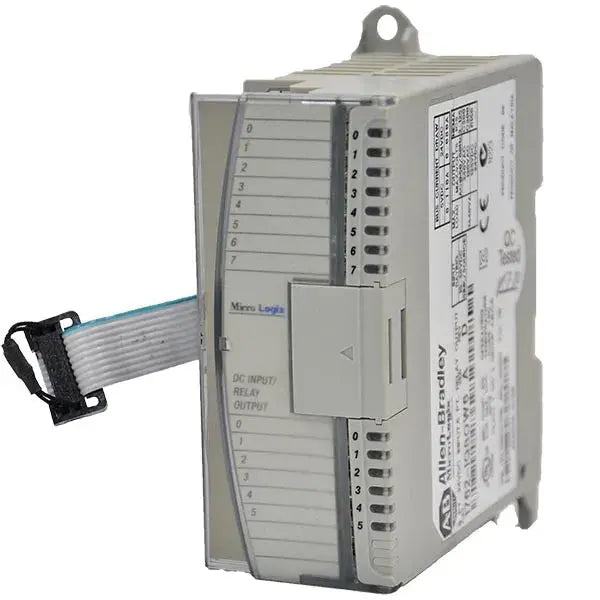

The Allen-Bradley 1762-IQ8OW6 is a robust and versatile combination I/O module specifically designed for seamless integration with the MicroLogix 1200 and 1400 programmable logic controllers (PLCs). This essential component of industrial automation systems offers a highly efficient and space-saving solution by consolidating both digital input and relay output capabilities into a single, compact unit. Engineered for demanding environments, the 1762-IQ8OW6 provides precise control and monitoring for a wide array of applications, making it an indispensable asset for modern manufacturing, process control, and building automation.

Its intelligent design caters to applications requiring both reliable input signal acquisition and discrete output control, simplifying wiring and reducing panel footprint. This module is an excellent choice for system integrators and OEMs seeking to optimize their control systems with a dependable and flexible I/O solution.

Key Features

• 8 Digital Inputs (24V DC sink/source) and 6 Relay Outputs (AC/DC)
• Compact, space-saving design for efficient panel utilization
• Removable Terminal Blocks for quick and easy installation and maintenance
• Channel-level Status LEDs for clear input and output indication
• Broad operating temperature range (0°C to +55°C)
• Compatible with MicroLogix 1200 and 1400 controllers
• UL, CE, and c-UL certified for global compliance

Technical Specifications

• Model: 1762-IQ8OW6
• Input Channels: 8 (24V DC sink/source)
• Output Channels: 6 (mechanical relay)
• Input Voltage Range: 10–30V DC
• Input Current: Approximately 6 mA @ 24V DC
• Relay Output Voltage Range: Up to 250V AC / 30V DC
• Relay Output Current: Up to 2A per point (resistive)
• Module Type: Combination I/O
• Mounting: DIN rail or panel mountable
• Operating Temperature: 0°C to +55°C (32°F to 131°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Certifications: UL, CE, c-UL
• Compatible PLCs: Allen-Bradley MicroLogix 1200, MicroLogix 1400

Applications

• OEM Equipment and Machinery
• Packaging and Conveying Systems
• Building Automation and HVAC Control
• Industrial Control Panels for small to medium-scale automation
• Material Handling and Logistics
• Water and Wastewater Treatment Facilities

Why Choose This Model?

• **Optimized Space and Cost:** Combines both digital input and relay output functionality into a single module, significantly reducing panel space requirements and overall system costs.
• **Versatile Output Control:** Capable of handling both AC and DC loads with its robust mechanical relays, providing exceptional flexibility for diverse control applications.
• **Seamless Integration:** Specifically designed for effortless compatibility with Allen-Bradley MicroLogix 1200 and 1400 controllers, ensuring reliable performance within existing systems.
• **Enhanced Diagnostics:** Equipped with channel-level status LEDs that provide immediate visual feedback on input and output states, simplifying troubleshooting and maintenance.
• **Rugged Industrial Design:** Built to withstand harsh industrial environments, offering reliable operation and a long service life in critical applications.
• **Global Compliance:** Features UL, CE, and c-UL certifications, ensuring adherence to international safety and quality standards, making it suitable for worldwide deployment.

Order Now

Experience the superior performance and efficiency of the Allen-Bradley 1762-IQ8OW6 combination I/O module. This essential component is in stock and ready for worldwide shipping to elevate your industrial automation capabilities. Enhance your control systems with this reliable, space-saving solution. Explore our comprehensive range of Allen-Bradley MicroLogix controllers, I/O expansion modules, and prewired terminal blocks to complete your automation setup. Contact us today to secure your module and benefit from its advanced functionality.
