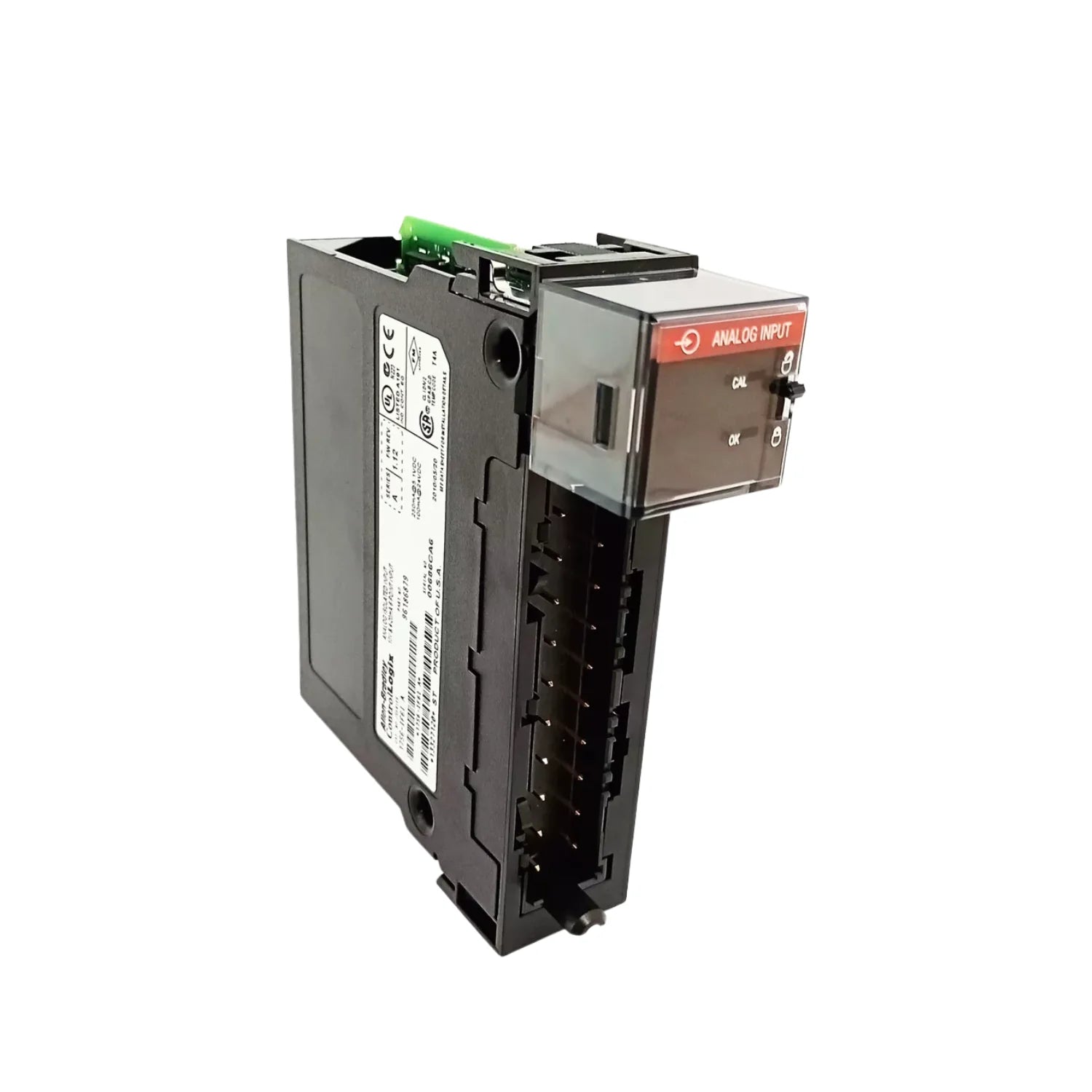

Allen-Bradley 1756-IF16IH

Overview

The Allen-Bradley 1756-IF16IH is a high-performance ControlLogix Analog Input Module meticulously engineered to meet the demanding requirements of modern industrial automation systems. As a crucial component within the ControlLogix family, this module excels in providing precise and reliable data acquisition. With its 16 independently isolated current input channels, it robustly supports both 0-20mA and 4-20mA signals, making it highly versatile for a multitude of sensor types and industrial processes. A standout feature is its comprehensive integration of the HART communication protocol, with a dedicated modem per channel. This significantly enhances diagnostic capabilities, simplifies device configuration, and ensures unparalleled accuracy in signal acquisition, thereby optimizing process control and operational efficiency. The 1756-IF16IH is the ideal choice for applications demanding exceptional signal integrity and advanced device management within demanding industrial environments.

Key Features

• 16 Isolated Analog Input Channels: Provides independent signal conditioning and isolation for each of the 16 current inputs (0-20mA, 4-20mA).
• Integrated HART Protocol Support: Enables advanced digital communication capabilities for field devices, supporting comprehensive diagnostics and remote configuration.
• Dedicated HART Modem per Channel: Ensures simultaneous and independent HART communication for all 16 channels without compromising performance.
• ControlLogix System Compatibility: Seamlessly integrates with Allen-Bradley ControlLogix PLCs and automation platforms for simplified system design and operation.
• High-Accuracy Current Measurement: Delivers precise and reliable current signal acquisition, crucial for critical process control applications.
• Enhanced Noise Immunity: Isolated channels significantly reduce electromagnetic interference, ensuring signal integrity in harsh industrial settings.
• Robust Industrial Design: Engineered for durability and consistent performance in challenging operational environments.

Technical Specifications

• Model: 1756-IF16IH
• Platform: ControlLogix
• Input Channels: 16 Isolated Analog Current Inputs
• Current Ranges: 0-20mA, 4-20mA
• HART Communication: Yes, with Dedicated Modem on Each Channel
• Resolution: 16 bits (selectable)
• Input Impedance: 250 Ohms (nominal)
• Isolation Voltage: 250V (channel-to-channel, channel-to-backplane)
• Update Time: Configurable (e.g., 1ms per channel)
• Mounting Type: ControlLogix Chassis Backplane
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Certifications: UL, c-UL, CE, C-Tick (where applicable)

Applications

• Industrial Process Control and Automation (e.g., chemical, oil & gas, water treatment)
• Remote Device Diagnostics and Configuration of HART-enabled field instruments
• High-Accuracy Current Signal Acquisition for critical measurements
• Instrumentation and Sensor Interfacing in complex control systems
• HVAC and Building Management Systems for precise monitoring
• Pharmaceutical and Food & Beverage Manufacturing for stringent process control

Why Choose This Model?

• Unmatched Precision: Benefit from 16-bit resolution and high-accuracy current measurement, ensuring reliable data for critical processes.
• Advanced Diagnostics: Leverage full HART protocol support on every channel for intelligent device management, predictive maintenance, and reduced downtime.
• Superior Signal Integrity: Isolated input channels and robust design provide exceptional noise immunity, safeguarding against electrical interference.
• Seamless Integration: Designed specifically for ControlLogix, guaranteeing easy installation and compatibility within existing or new automation architectures.
• Increased Uptime: Remote diagnostic capabilities and reliable performance minimize maintenance needs and keep your operations running smoothly.
• Enhanced Flexibility: Supports both 0-20mA and 4-20mA current ranges, offering versatility for a wide array of industrial sensors and transmitters.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 1756-IF16IH ControlLogix Analog Input Module. Its combination of high-precision input, advanced HART communication, and isolated channel architecture makes it an indispensable component for demanding applications. Invest in superior performance and reliability for your control systems today. Contact us or add to cart to secure your 1756-IF16IH module and streamline your operational efficiency.
