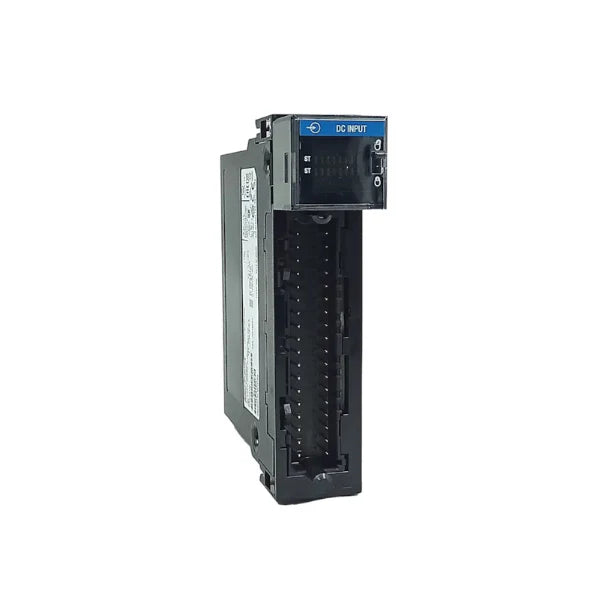

Allen-Bradley 1756-IB16I

Overview

The Allen-Bradley 1756-IB16I is a high-performance 16-point DC input module specifically engineered for the demanding environments of ControlLogix systems. This module stands out due to its individually isolated inputs, a critical feature that significantly enhances signal integrity and provides robust protection against electrical noise interference. Operating seamlessly within a 10-30V DC range, the 1756-IB16I ensures highly accurate and reliable discrete signal monitoring, making it an indispensable component for a wide array of industrial automation applications. Its design is optimized for secure and flexible wiring, compatible with the 1756-TBCH or 1756-TBS6H Removable Terminal Block (RTB) housings, ensuring easy integration and maintenance within your existing or new Rockwell Automation infrastructure.

Key Features

• 16 Individually Isolated DC Inputs: Ensures superior signal reliability and minimizes cross-talk or noise interference.
• Wide Operating Voltage (10-30V DC): Perfectly suited for diverse low-voltage industrial automation setups.
• Enhanced Signal Integrity: Individually isolated channels actively reduce electrical noise, vital for sensitive applications.
• Flexible Wiring Options: Seamlessly integrates with 1756-TBCH or 1756-TBS6H RTBs for secure and adaptable connections.
• Space-Efficient ControlLogix Design: Optimized for compact installations within ControlLogix chassis.
• Seamless Rockwell Automation Integration: Guarantees effortless compatibility and performance within your existing systems.
• Robust Industrial Performance: Built to withstand harsh industrial environments, ensuring long-term reliability.

Technical Specifications

• Model: 1756-IB16I
• Series: ControlLogix
• Number of Inputs: 16 (Individually Isolated)
• Operating Voltage: 10-30V DC
• Current Draw @ 5.1V: 250 mA
• Current Draw @ 24V: 3 mA
• Input Delay Time (On/Off): Configurable from 0.5 ms to 25.5 ms
• Input Voltage Range: 0-30V DC (max)
• Connector Type: 36-Pin
• Compatible Terminal Blocks: 1756-TBCH, 1756-TBS6H
• Mounting Type: ControlLogix Chassis
• Isolation Voltage: 250V (continuous)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5-95% non-condensing

Applications

• Factory Automation: Provides high-reliability DC signal monitoring for manufacturing lines and machinery.
• Process Control Systems: Ensures stable and accurate input detection in chemical, pharmaceutical, and other process industries.
• Machine Interface Management: Supports seamless integration with industrial controllers and human-machine interfaces.
• SCADA & Distributed I/O Systems: Enhances data acquisition reliability and system responsiveness across vast networks.
• Energy Management: Monitors DC inputs for power distribution and control within industrial facilities.
• Transportation Systems: Ideal for signal input within railway, automotive, and other transport control applications.

Why Choose This Model?

• Unmatched Reliability: Individually isolated inputs provide superior protection against noise and ground loops, ensuring consistent data.
• Optimized for ControlLogix: Designed for seamless integration and optimal performance within the ControlLogix platform.
• Enhanced System Performance: Reduces the risk of false signals and erratic behavior, leading to more stable operations.
• Flexible and Adaptable: Compatible with various RTBs and suitable for a broad range of industrial DC input applications.
• Robust Construction: Engineered by Allen-Bradley for durability and long-lasting operation in demanding industrial environments.
• Future-Proof Investment: A cornerstone component for reliable and scalable industrial automation systems.

Order Now

Elevate your industrial automation system with the Allen-Bradley 1756-IB16I ControlLogix Isolated DC Input Module. Experience the difference that precision, reliability, and seamless integration can make to your operational efficiency. Don't compromise on the integrity of your industrial signals – choose the 1756-IB16I for dependable performance. Order now to take advantage of fast shipping and worldwide delivery options, and secure your competitive edge in the rapidly evolving landscape of industrial automation.
