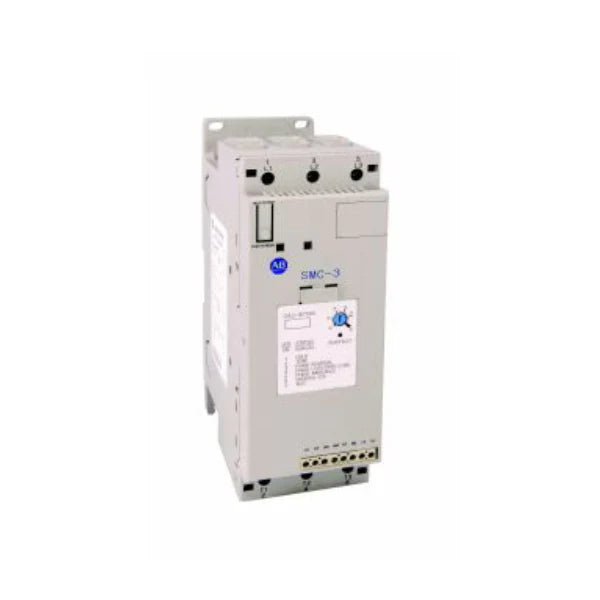

Allen-Bradley 150-C43NBD

Overview

The Allen-Bradley 150-C43NBD is a premier SMC-3 series soft starter, meticulously engineered to provide superior motor control and protection in demanding industrial environments. This robust 3-phase soft starter is designed for applications requiring a maximum current rating of 43A and operating at 480V. Its advanced design ensures exceptionally smooth motor startups, significantly mitigating mechanical stress on equipment and extending motor lifespan. As an open-type device, it offers flexible integration into various control panels, making it an ideal choice for a multitude of industrial automation tasks where reliable and efficient motor management is paramount. By carefully controlling the motor's acceleration, the 150-C43NBD not only prevents damage but also contributes to energy savings and reduced maintenance costs, solidifying its position as a vital component in modern industrial systems.

Key Features

• Efficient 3-Phase Motor Control: Provides precise and reliable control for 3-phase induction motors, ensuring optimal performance.
• High Current Rating: Capable of handling up to 43 Amperes, suitable for a wide range of medium to high-power motor applications.
• Broad Voltage Compatibility: Fully compatible with 480V AC systems, operating effectively within a 50/60Hz frequency range for global applicability.
• Compact Open-Type Design: Facilitates easy and seamless integration into existing or new control panels, maximizing space efficiency.
• Integrated Motor Protection: Features advanced overload and fault protection mechanisms to safeguard motors and associated machinery from potential damage.
• Flexible Control Voltage: Operates efficiently with a versatile 100-240V AC control voltage, enhancing adaptability to diverse control system architectures.
• Reduced Mechanical Stress: Optimizes motor startup and shutdown sequences, significantly minimizing wear and tear on mechanical components.

Technical Specifications

• Model: 150-C43NBD
• Series: SMC-3 Soft Starter
• Rated Current: 43A
• Operating Voltage: 200-480V AC
• Control Voltage: 100-240V AC
• Phase Configuration: 3-Phase
• Frequency: 50/60Hz
• Mounting Type: Panel Mount (Open Type)
• Temperature Range: 0°C to 40°C (32°F to 104°F)

Applications

• Pumps: Ensures gentle starts to prevent water hammer effects and reduce stress on pumping systems, extending equipment life.
• Fans and Blowers: Minimizes mechanical shock during acceleration, leading to quieter operation and reduced maintenance for ventilation systems.
• Conveyors and Material Handling: Provides controlled acceleration and deceleration for smooth material flow, preventing product damage and system jerks.
• Compressors: Protects against high inrush currents and mechanical stresses during startup, enhancing compressor longevity and efficiency.
• Mixers and Agitators: Offers gradual torque application, preventing sudden surges and protecting mechanical components in mixing processes.
• Woodworking Machinery: Reduces impact on saws and other tools during startup, improving control and safety.

Why Choose This Model?

• Unmatched Motor Protection: Actively safeguards motors from electrical and mechanical stresses during every phase of operation, ensuring extended service life.
• Space-Saving and Adaptable: Its compact, open-type design allows for straightforward installation and integration into a wide array of industrial control panels.
• Significant Energy Savings: By optimizing motor starts, this soft starter reduces power consumption and decreases mechanical wear, leading to lower operating costs.
• Reliability from a Trusted Leader: As an Allen-Bradley product, the 150-C43NBD embodies decades of engineering excellence and proven performance in industrial automation.
• Enhanced System Efficiency: Contributes to overall operational smoothness and efficiency, leading to higher productivity and reduced unexpected downtime.
• Simplified Maintenance: The reduction in mechanical stress translates directly into fewer breakdowns and less frequent maintenance requirements.

Order Now

Elevate your industrial motor control with the Allen-Bradley 150-C43NBD SMC-3 Soft Starter. Invest in superior protection, efficiency, and reliability for your critical applications. Configure your system for optimal performance and secure your operational uptime by ordering this high-quality soft starter today.
