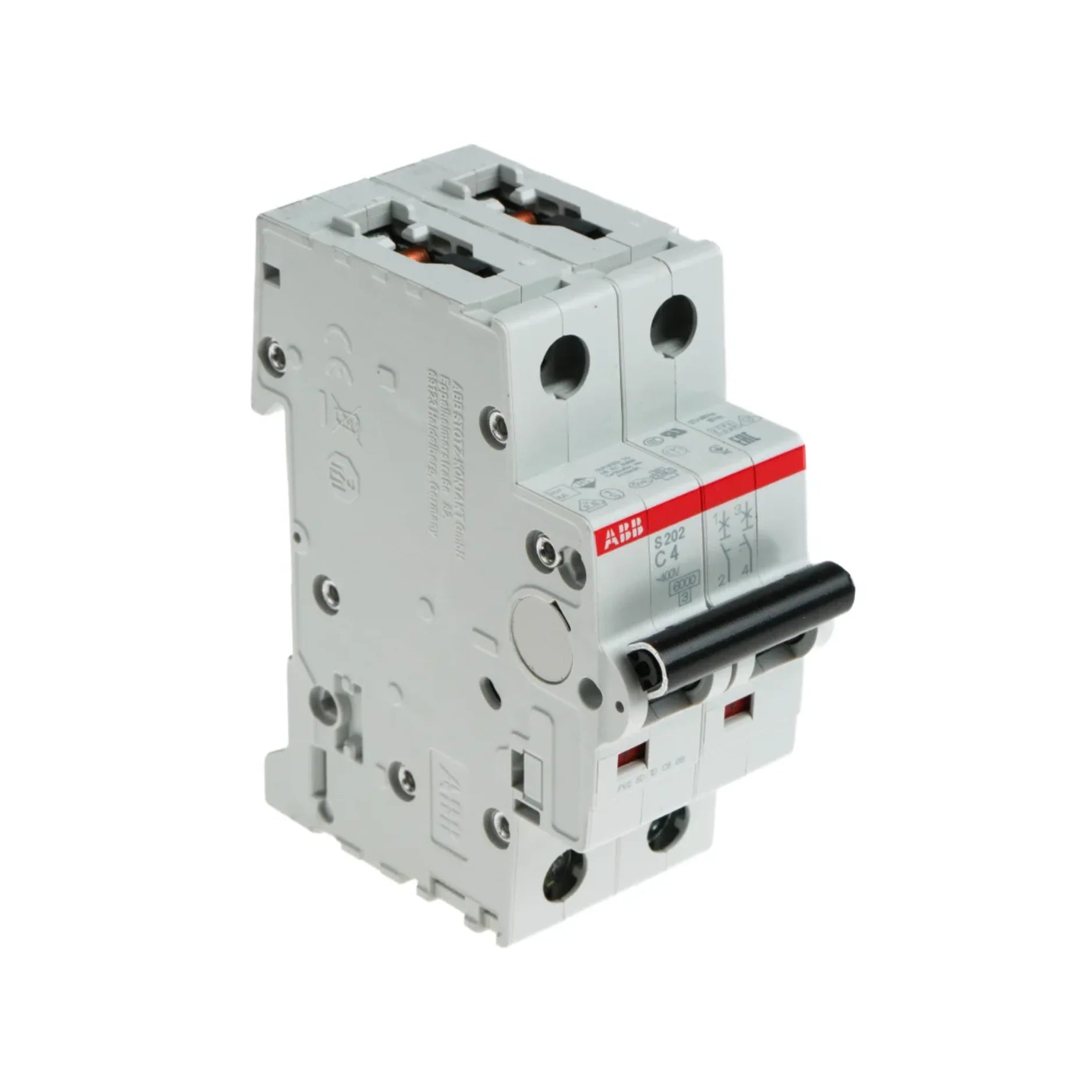

ABB S202-C4

Overview

The ABB S202-C4 is a high-performance miniature circuit breaker (MCB) from ABB's System pro M compact® series, engineered to deliver robust protection against overload and short-circuit conditions in both residential and commercial electrical installations. Designed for circuits with lower power consumption and sensitive devices, this 4A rated MCB ensures the integrity and safety of your electrical systems. Its compact frame and efficient design make it an ideal choice for integrating into control panels and distribution boards, safeguarding vital circuits without demanding excessive space. The S202-C4 embodies ABB's commitment to reliable electrical protection and efficiency, making it a cornerstone for modern electrical infrastructure.

Key Features

• Model & Type: ABB S202-C4 Miniature Circuit Breaker (MCB)
• Rated Current: Precise 4A protection for sensitive circuits
• Tripping Characteristics: C-curve for reliable protection against moderate inrush currents
• Breaking Capacity: High 6kA breaking capacity at 230V for enhanced safety
• Compact Design: Space-saving profile perfect for diverse electrical enclosures
• Mounting: Effortless DIN rail mounting for quick and secure installation
• Reliability: Fast and accurate tripping mechanisms to prevent electrical faults

Technical Specifications

• Model: S202-C4
• Function: Overload and Short Circuit Protection
• Rated Current: 4 Amperes (4A)
• Rated Voltage: 230/400V AC
• Breaking Capacity: 6kA at 230V AC
• Tripping Type: C (for moderate inrush current applications)
• Number of Poles: 2-pole (for two-phase circuit protection)
• Mounting Type: 35mm DIN Rail
• Operating Temperature: -25°C to +60°C
• Protection Class: IP20
• Weight: Approximately 0.2 kg
• Standards: IEC/EN 60898-1, IEC/EN 60947-2

Applications

• Residential Circuits: Essential protection for household wiring, lighting, and small appliances.
• Commercial Buildings: Safeguarding lighting installations, small power circuits, and office equipment.
• Distribution Panels: Ideal for low-power applications within industrial and commercial control systems.
• HVAC Systems: Ensuring reliable protection for heating, ventilation, and air conditioning units.
• Control Systems: Providing critical circuit protection in automation and control cabinets.

Why Choose This Model?

• Unwavering Protection: Offers superior protection against electrical overloads and short circuits, enhancing system safety.
• Space Efficiency: Its compact size allows for more efficient use of space within control panels and distribution boards.
• Ease of Installation: Designed for quick and secure DIN rail mounting, reducing installation time and effort.
• Broad Compatibility: Suitable for a wide range of applications from residential to light industrial settings.
• ABB Quality: Backed by ABB's reputation for manufacturing high-quality, durable, and reliable electrical components.
• Cost-Effective Security: Provides long-term, dependable protection, minimizing potential damage and downtime.

Order Now

Elevate the safety and reliability of your electrical installations with the ABB S202-C4 Miniature Circuit Breaker. Its advanced protection features, compact design, and ease of installation make it an indispensable component for any modern electrical system. Don't compromise on electrical safety—choose the trusted performance of ABB. Order your ABB S202-C4 today to ensure optimal protection and peace of mind.
